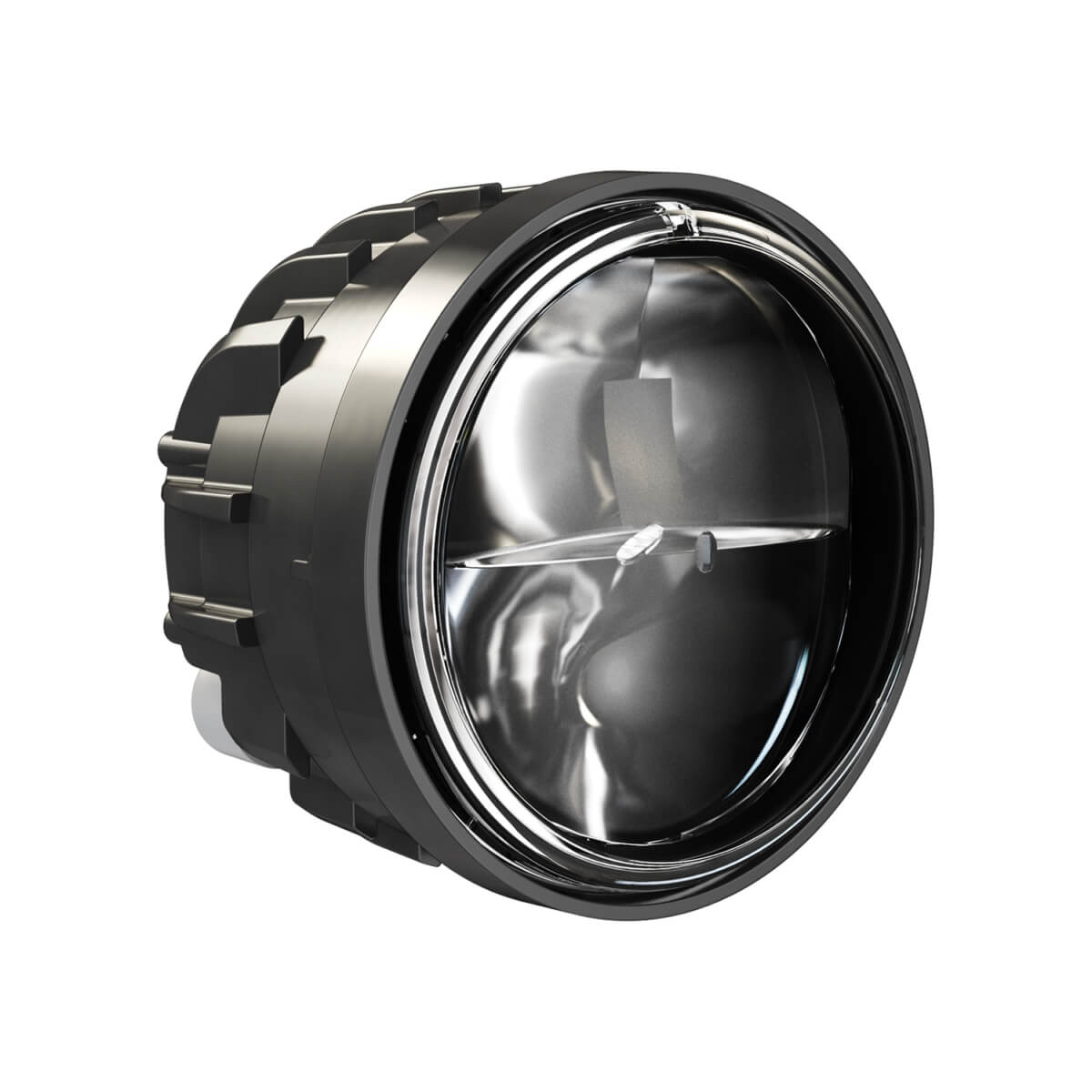

LED headlight model 97

12-24 V, low and high beam, ECE road approval (Reg. 112), LHT

Model 97 is a compact and bright LED headlight. It offers a road-approved low beam and high beam as well as a parking light. The elegant housing, which is only 100 mm in diameter, is made of robust aluminum. With the additionally available mounting brackets, the headlight can be fitted as a pedestal mount or a built-in headlight.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-32
Power consumption [W]	18 (low), 21.6 (high), 1.2 (position)
Temperature range [° C]	-40 to 65
Protection class	IP69K
Standards	ECE (Reg. 7, 112)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Brightness [lm], theoretically	1600 (Abbl.), 1800 (Fernl.)
Brightness [lm], eff.	321 (Abbl.); 497 (Fernl.)
Brightness [cd]	14600 (Abbl.); 41800 (Fernl.)
Temperature range [° C]	-40 to 65
