Item no.: FS-1518-84342

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

With becoming an Evolution model the small LED headlight model 8415 has been significantly upgraded. The Evolution model has not only received a new housing design, it is based on a completely new...

Close menu

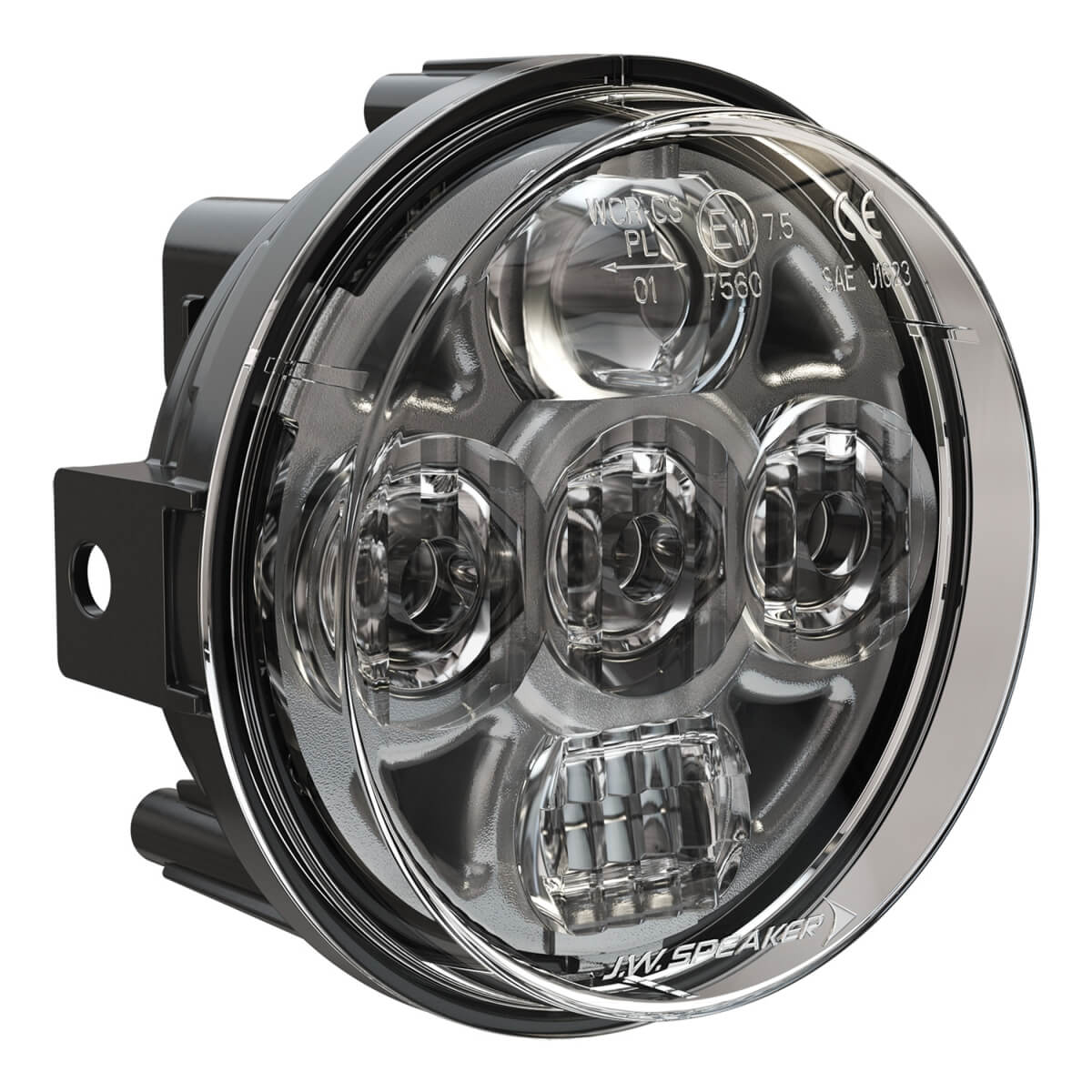

LED headlight model 8415 Evolution

12-24 V, low and high beam, ECE road approval (Reg. 113), fixed mount

With becoming an Evolution model the small LED headlight model 8415 has been significantly upgraded. The Evolution model has not only received a new housing design, it is based on a completely new developed platform.

The benefits at a glance:

• High performance optics with enhanced light output

• High beam with 720 effective lumens

• New and highly resistant housing made of Xenoy

• Optimized thermal management through the use of heat-conductive plastic

• Two different mounting options

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-30
Power consumption [W]	13.68 (low), 4.92 (high)
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 113), SAE (J1623, J2258)

Output

Brightness [lm], eff.	240 (Abblendl.), 720 (Fernl.)
Brightness (reference ID)	7,5
Beam pattern / lens	Abblend- und Fernlicht
Temperature range [° C]	-40 to 65

Mounting

Connector	Delphi MP150-3M (12129615)
Mating connector	Delphi MP150-3F (12110293)
Mounting	Built-in
Installation dimensions / diameter [mm]	110
Reverse polarity protection	1
