The modules of the rectangular built-in LED light model 6048 are traditionally used with a flood beam pattern as a work light (for industrial vehicles) or as an additional lights (for off-road...

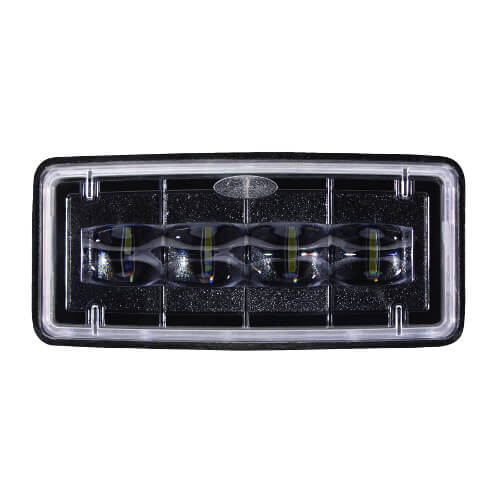

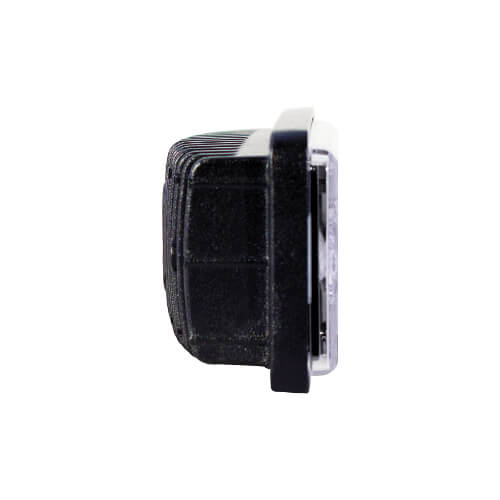

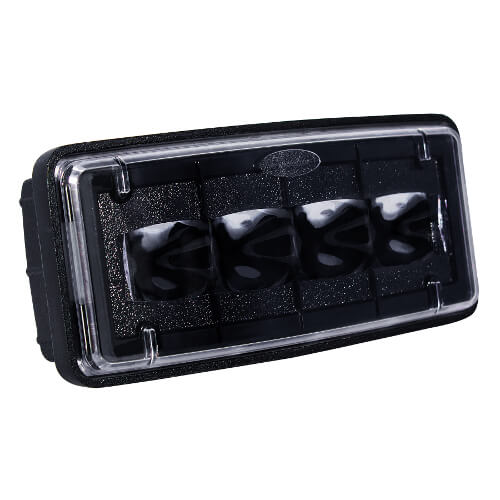

LED built-in fog light model 6048
12 V (9-18 V), 250 lm
The modules of the rectangular built-in LED light model 6048 are traditionally used with a flood beam pattern as a work light (for industrial vehicles) or as an additional lights (for off-road vehicles). These headlights are then mounted either individually or grouped as part of a light bar (see Model 9049).

This new version of the Model 6048 has been specially developed to be a fog light. And even as a fog light it is perfectly usable in a light bar. Such a light bar can now individually been equipped with 2, 3, 4, or 6 modules.
Factsheets
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 9-18
Power consumption [W] 14.4
Protection class IP69K
Standards ECE (Reg. 19), SAE (J583)
EMC (electromagnetic compatibility) ECE (Reg. 10), SAE (J1113)
Transient protection 150 V @ 1 Hz-100 Pulse
Output
Brightness [lm], theoretically 800
Brightness [lm], eff. 250
Beam pattern / lens Nebellicht
Mounting
Connector Bare wire leads
Mounting Built-in
Installation dimensions / diameter [mm] 138,1x63,2
Installation depth [mm] 45,1
Reverse polarity protection 1
Functions
Fog light
