LED Offroad Light Trail 6

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Trail 6 Pro In the variant Trail 6 Pro this lights becomes smart. With integrated Bluetooth™ and the corresponding App J-Link™ further functions can be switched. - Controllable LED colour -...
LED Offroad Light Trail 6
12 V, Pro, J-Link, 2-light-kit

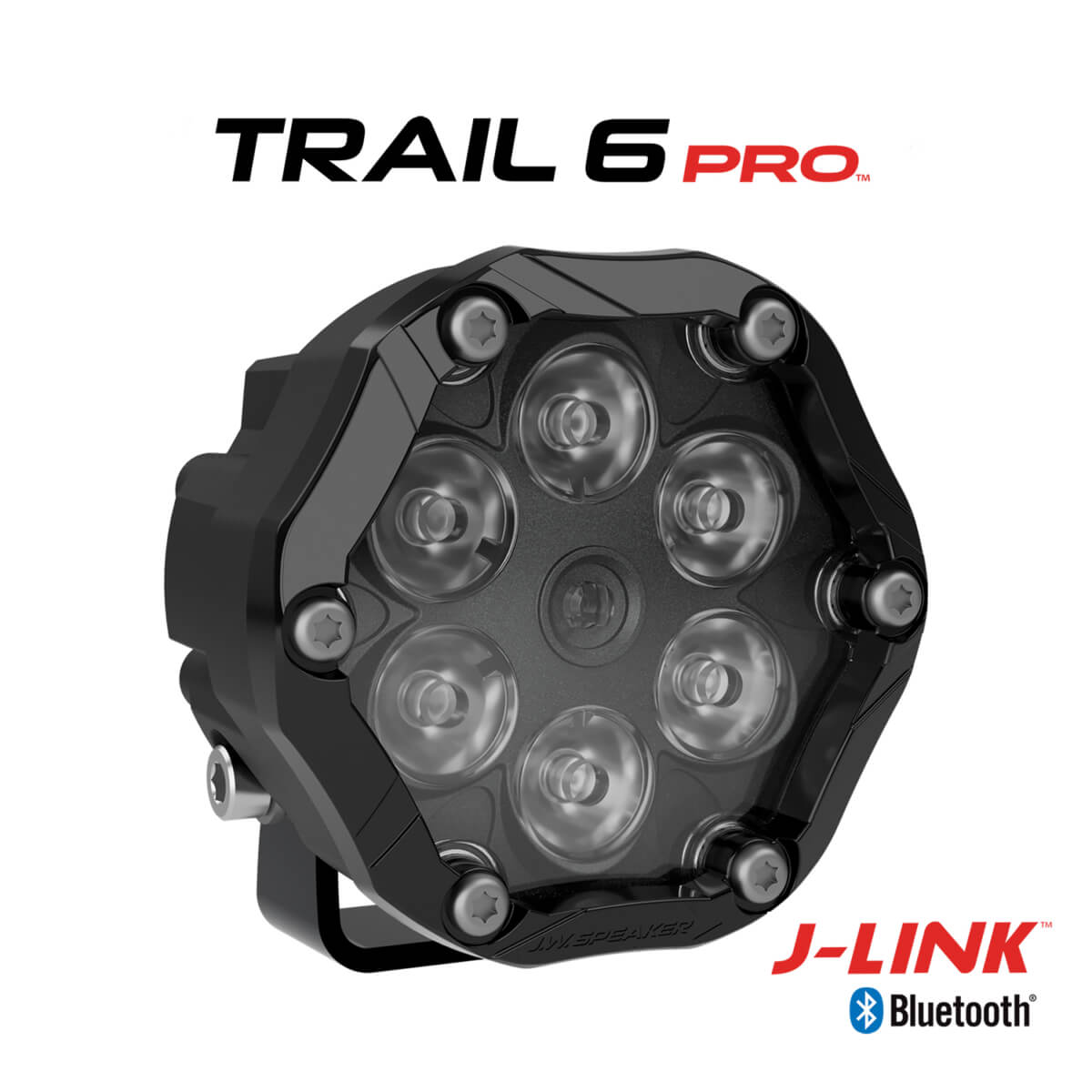

Trail 6 Pro

In the variant Trail 6 Pro this lights becomes smart. With integrated Bluetooth™ and the corresponding App J-Link™ further functions can be switched.

- Controllable LED colour

- Compatible with EVO J3™ LED headlights for the best off-road experience.

- More safety and visibility through bright white or yellow LEDs, ideal in dust or fog.

- Replace the Jeep JK series indicators with these bright auxiliary lights (when installing EVO J3 LED lights with integrated indicators).

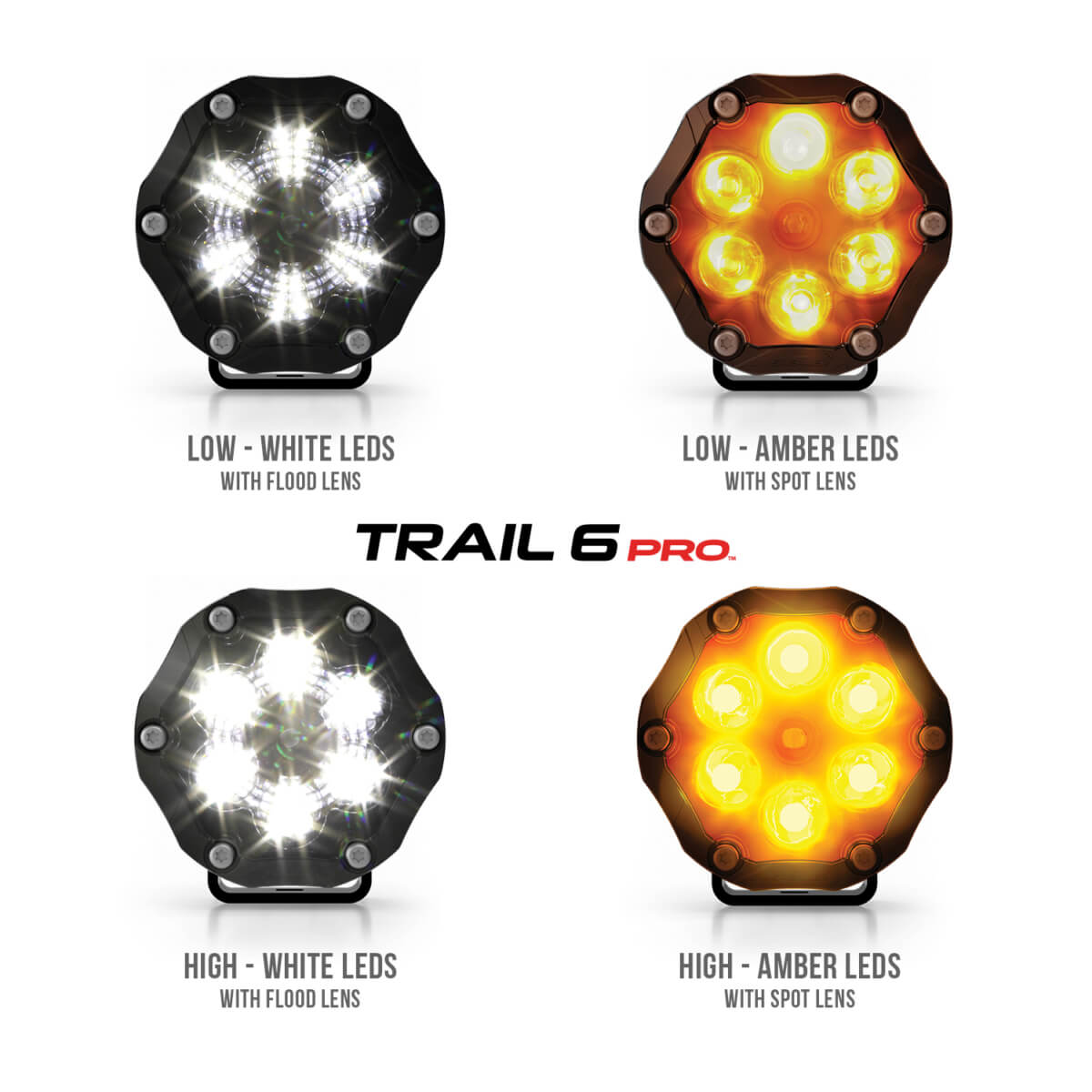

- Switch between low or high brightness and punch or spread light patterns as your speed and trail conditions change.

This series fits Jeep JK and JL models and can be mounted anywhere in the Jeep using multiple mounting brackets. But of course these headlights also look good on other vehicles! The Trail 6 Pro is also ideal for other off-road applications such as ATVs & UTVs.

Scope of delivery:

The lights of the Trail 6 series are delivered as a set of two headlights each. Also included: Universal bracket, mounting accessories and 2 connection cables with quick coupling that protect your lights from dust and water. The versatile Trail 6 housing is designed so that it can be installed with the mounting template included in the scope of delivery as a suspension, pedestal or recessed unit. Each set includes two interchangeable lenses (spot, terrain illumination and wide terrain illumination) for individual adaptation.

Note:

The Trail 6 series headlamps are designed for off-road use. They are not approved for road use as driving lights.

Functions of the J-Link App:

- Brightness: Adjust the brightness of your headlights to your needs.

- Colour: Switch between white and yellow light.

- Light mode: Create and save preferred settings for your vehicle lighting.

The app is freely available for Android and iOS and works with all headlights with J-Link™.
Factsheets
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 10-15
Power consumption [W] 30
Temperature range [° C] -40 to 80
Output
Brightness [lm], theoretically 1320
Brightness [lm], eff. 840
Brightness [cd] 31200
Beam pattern / lens 3 verschiedene Streuscheiben (wechselbar)
Temperature range [° C] -40 to 80
Mounting
Connector Bare wire leads
Mounting Universal mount, M8
Reverse polarity protection 1
Functions
Turn signal
Flood
Trap
Spot
Driving lights
