The new Corner Module LED from ECCO features an exceptionally wide spread of light, far increased over conventional LED Directional modules. Fitting one LED module on each corner of the vehicle...

Close menu

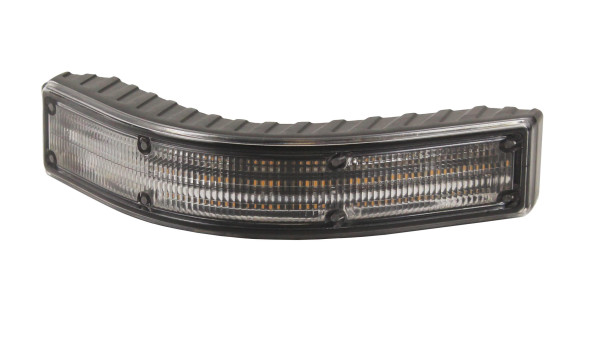

LED corner module strobe light ED5100

12-24 V, blue

The new Corner Module LED from ECCO features an exceptionally wide spread of light, far increased over conventional LED Directional modules. Fitting one LED module on each corner of the vehicle offers a full 360 degree warning coverage and is approved to ECE R65 category “T”. Fitting a pair of LED modules on either the front or the rear of the vehicle offers 270 degree coverage and is approved to ECE R65 category “HT”. The new Corner Module LED is also approved as a conventional LED Directional to ECE R65 category “X”.

Supplied with an adjustable stainless steel universal bracket this product is extremely versatile and offers 7 different flash patterns and a 3 year warranty.

The strobe ED5100 is avaliable in amber, blue and red.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-30
Power consumption [W]	2.4
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 65)
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Temperature range [° C]	-40 to 65
Miscellaneous	7 different strobe pattern
