Item no.: FS-1584-86344

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Full-scale headlight for industrial vehicles. Especially on industrial vehicles combination headlights with integrated turn signals are often used. Now there is a high quality LED solution. Model...

Close menu

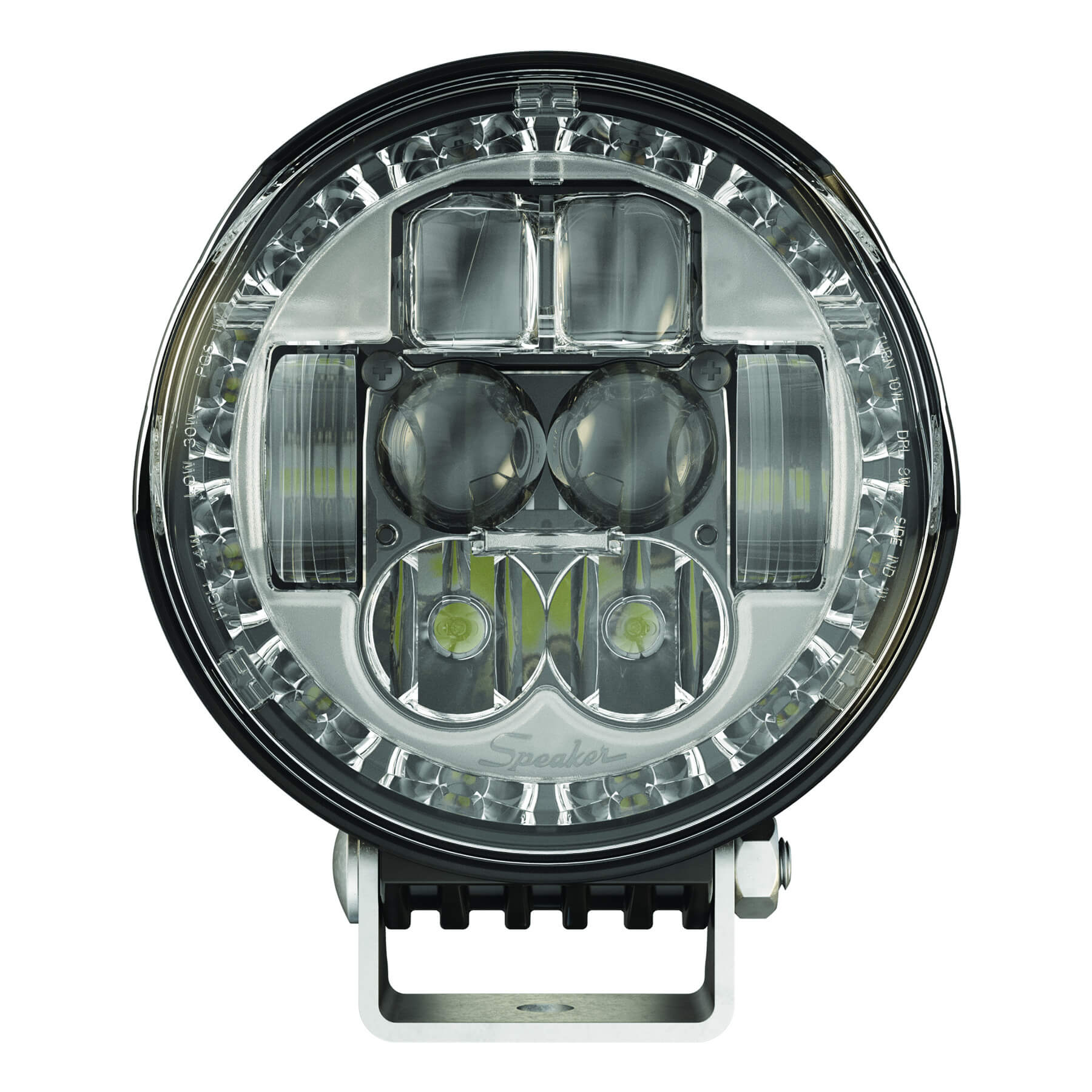

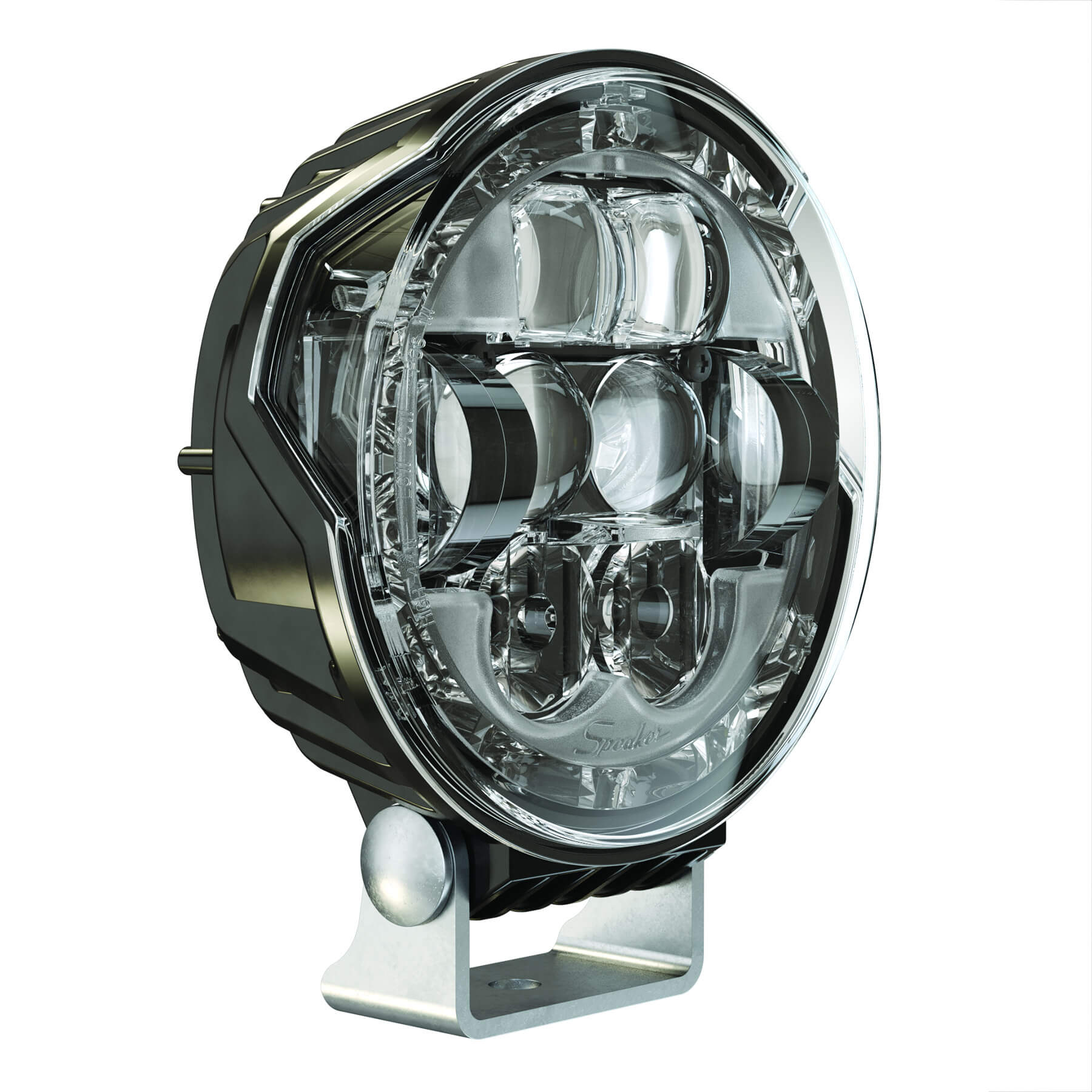

Model 8632 Evolution

12-24 V, low and high beam, with DRL and front position, with turn signal, with side marker light, ECE road approval (Reg. 6, 7, 87, 91, 112), pedestal mount, left

Full-scale headlight for industrial vehicles.

Especially on industrial vehicles combination headlights with integrated turn signals are often used. Now there is a high quality LED solution.

Model 8632 Evolution is based on the built-in model 8631 Evolution and provides high and low beam, front position light, daytime running lights as well as a turn signal. The newly designed upright mounted housing shows a side window so that the turn signal is also visible from the side.

Features:

• Combined high and low beam

• Turn signal, daytime running light and front position light in outer ring

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-32
Power consumption [W]	30 (low), 44 (high), 8.1 (DRL), 9.9-10.1 (turn), 0.9-1.0 (position)
Temperature range [° C]	-34 to 49
Protection class	IP67
Standards	ECE (Reg. 6, 7, 87 , 91, 112) FMVSS (108 Table VI, X, XIX, XVIII), SAE (J1395, J2087, J222)

Output

Brightness [lm], eff.	630 (Abblendl.), 1000 (Fernl.)
Brightness (reference ID)	12,5
Beam pattern / lens	Abblend- und Fernlicht, Standlicht, Tagfahrlicht, Fahrtrichtungsanzeiger
Temperature range [° C]	-34 to 49
