With the Model 8800 Evo-X, J.W. Speaker expands the Evo-X series with a high-performance 4x6-inch LED headlight featuring a modern light signature and striking appearance. The distinctive Evo-X...

Close menu

Model 8800 Evo-X

12-24 V, 5-in-1 headlight, ECE road approval, with heated lens, black bezel

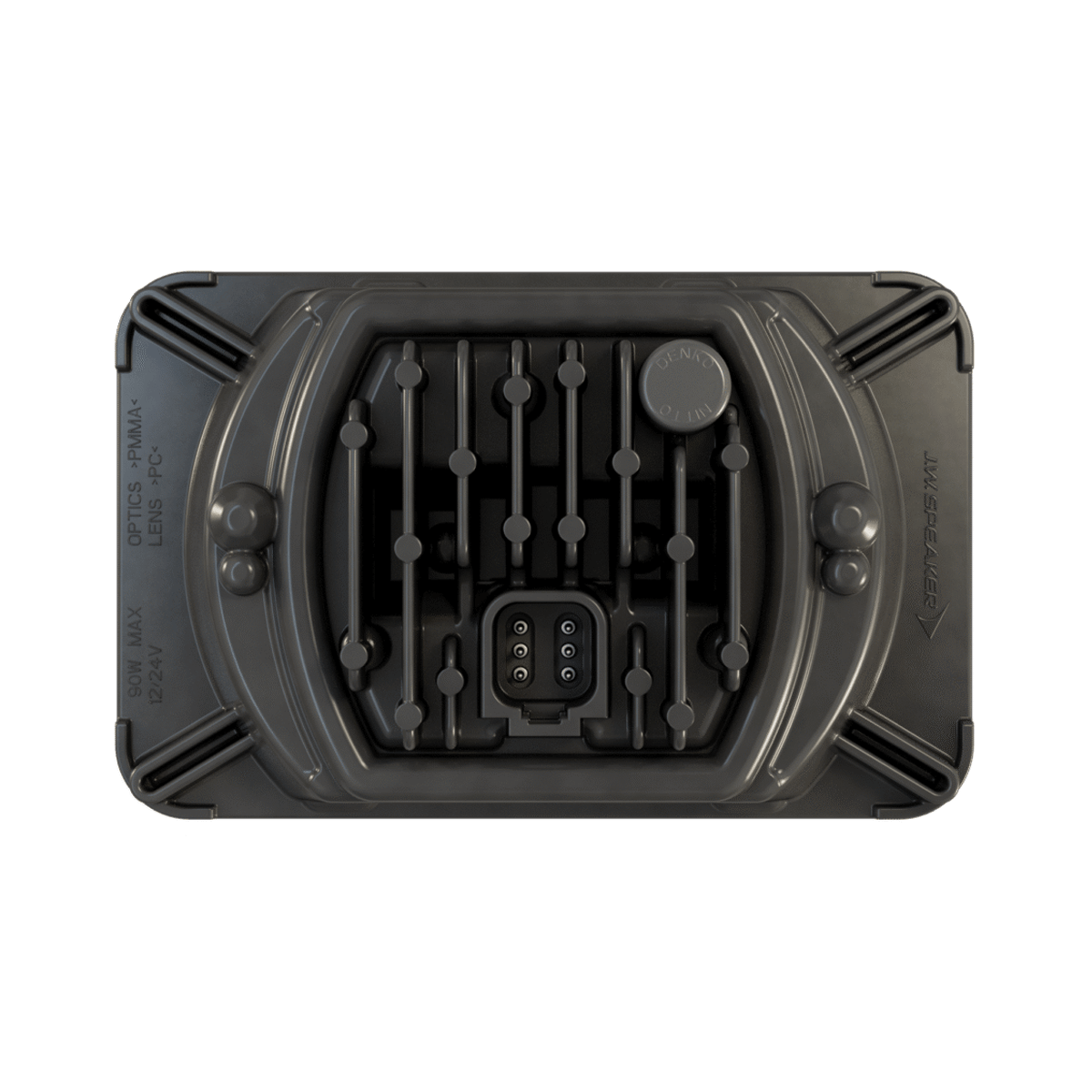

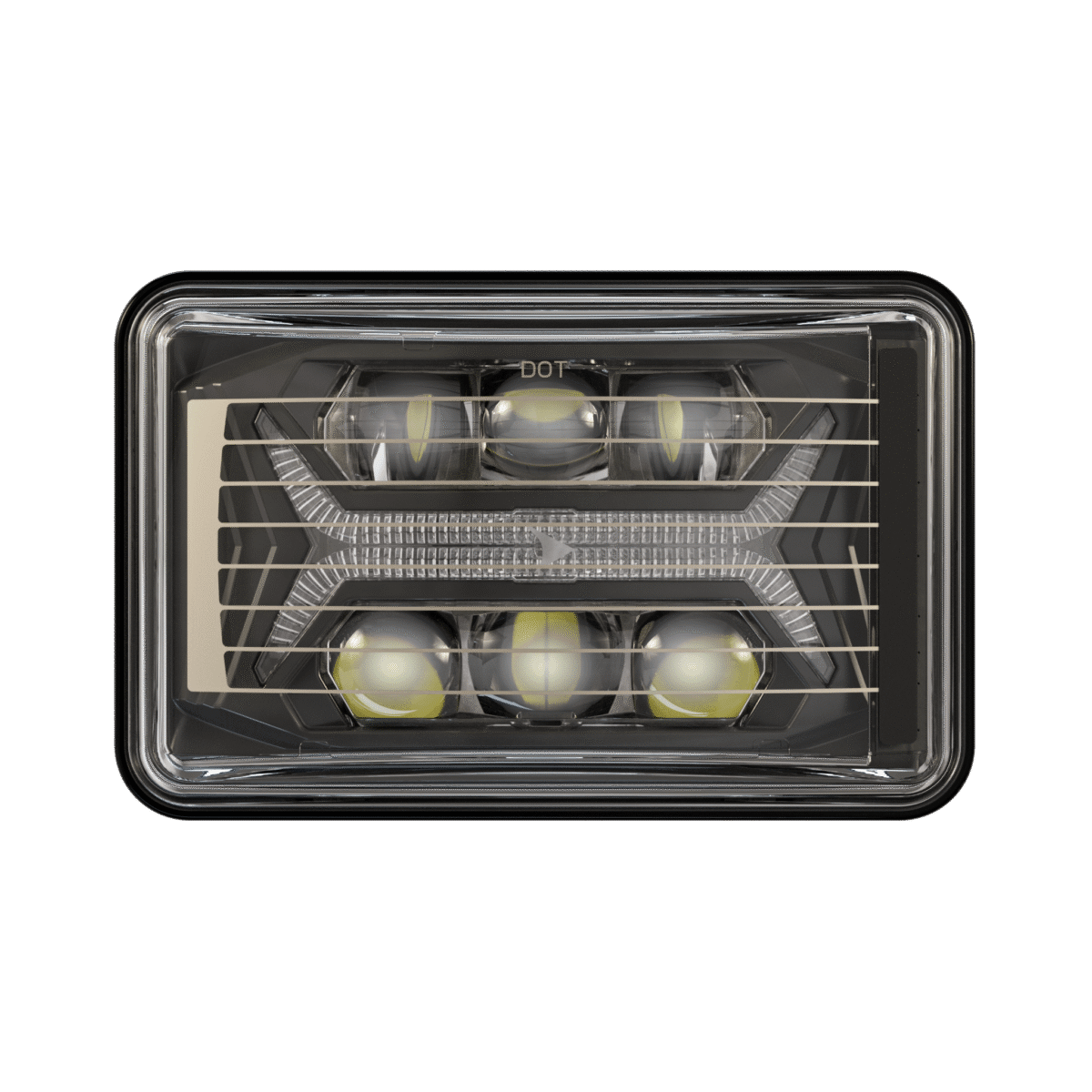

With the Model 8800 Evo-X, J.W. Speaker expands the Evo-X series with a high-performance 4x6-inch LED headlight featuring a modern light signature and striking appearance. The distinctive Evo-X design ensures a consistent front-end look across the series and is particularly well-suited for modern commercial, off-road, and specialty vehicles.

The light pattern is designed for uniform road illumination and good visibility at both close and long ranges. Thanks to Dual Burn technology, the low beam remains on even when the high beam is activated. This creates a wider and more uniform overall light pattern.

Model 8800 Evo-X is available in several variants. Depending on the version, different interior housing colors, SmartHeat lens heating, and various connection and approval options are available. This allows the headlight to be flexibly adapted to different vehicle concepts and applications.

The robust construction makes the Model 8800 Evo-X resistant to vibrations, moisture, and demanding environmental conditions. This makes the headlight suitable for professional use in industry, off-road applications, and specialty vehicles.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	9-32
Power consumption [W]	56.3–57.4 (low), 84.2–87.0 (high), 3.1–3.6 (front positions), 60.7–61.9 (DRL), 35.8–36.7 (turn)
Temperature range [° C]	-40 to 65
Protection class	IP67 & IP69K
Standards	ECE (R148-1b, R148-A, R148-RL, R149-C, R149-HR), FMVSS 108, SAE (J1383, J2087, J222)
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Brightness [lm], theoretically	2330 (Abblendl.), 3740 (Fernl.)
Brightness [lm], eff.	740 (Abblendl.), 1420 (Fernl.)
Brightness [cd]	60000
Temperature range [° C]	-40 to 65
