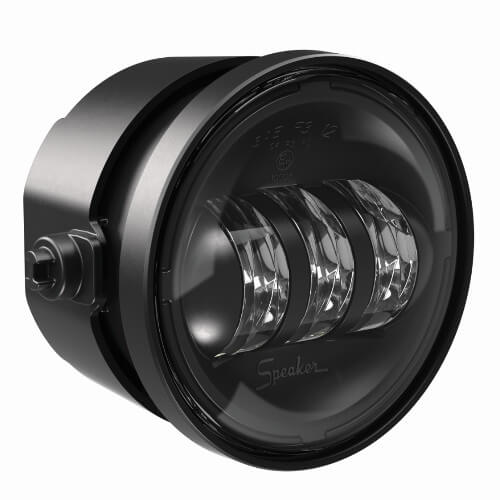

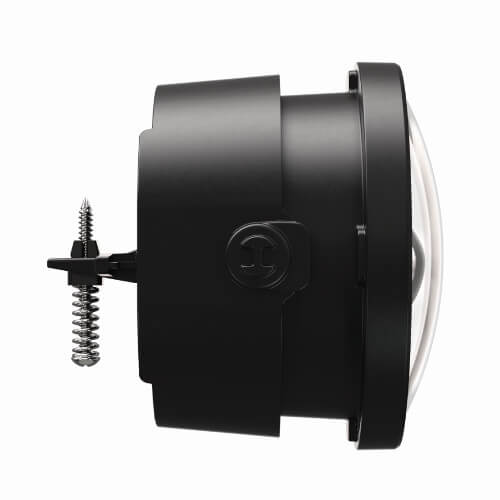

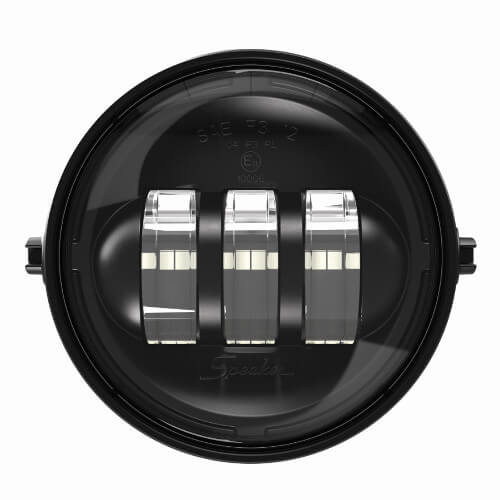

LED fog light model 6146

Preview: FS-1357_Nebelscheinwerfer_6146.jpg Preview: FS-1357_Nebelscheinwerfer_6146_2.jpg Preview: FS-1357_Nebelscheinwerfer_6146_3.jpg


  • Item no.: FS-1357-61331

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Functions Dimension drawing
Description
LED fog light model 6146 is technical identical to model 6145, though the housing is specially made to fit into the bumper of the Ford F-150.
Close menu
LED fog light model 6146
12 V (10-15 V), ECE road approval (Reg. 19), black bezel, for Ford F-150 model year 2005-2010
LED fog light model 6146 is technical identical to model 6145, though the housing is specially made to fit into the bumper of the Ford F-150.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 10-15
Power consumption [W] 19.2
Temperature range [° C] -40 to 65
Standards ECE (Reg. 19), SAE (J583), FMVSS (108), CMVSS (108)
Output
Brightness [lm], eff. 610
Beam pattern / lens Nebellicht
Temperature range [° C] -40 to 65
Mounting
Mounting
Connector Delphi MP280-2M (12084167)
Mating connector Delphi MP280-2F (12059183)
Mounting Built-in
Reverse polarity protection 1
Funktion
Functions
Fog light
Road approval
Dimension drawings
