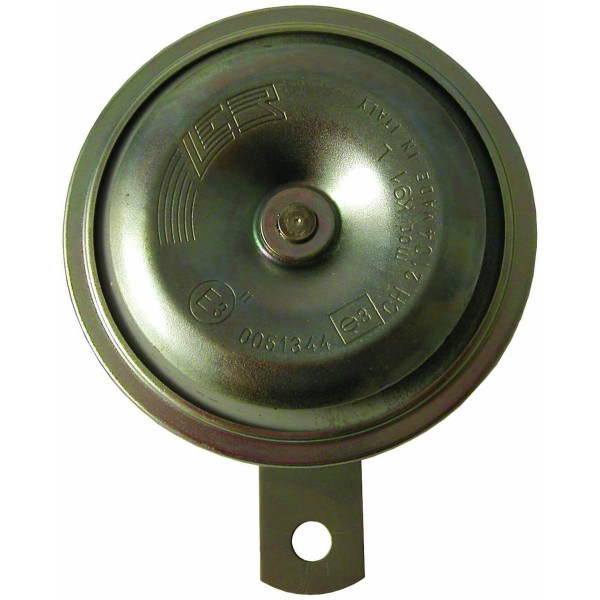

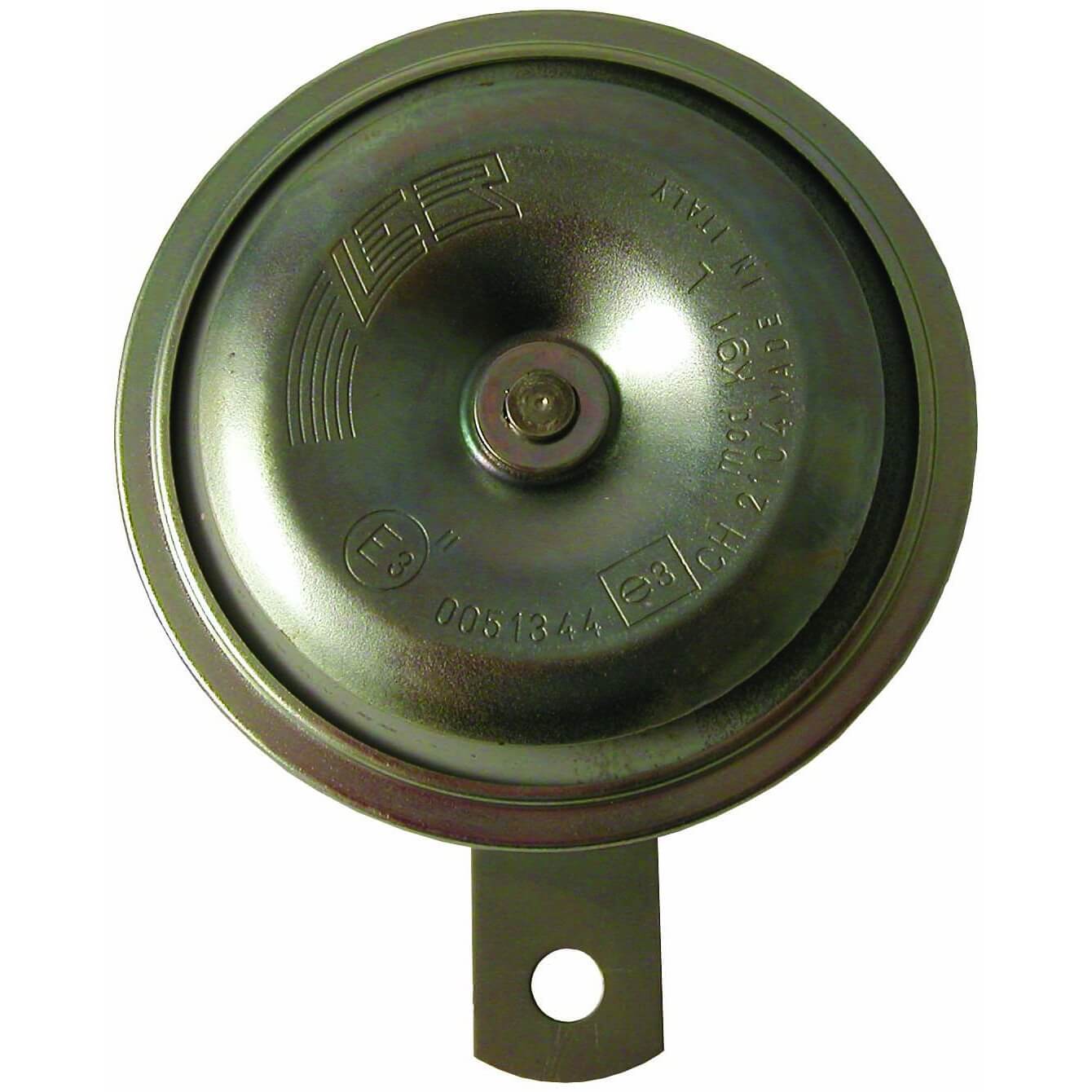

Horn K91

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
This classic horn has been available for the last 20 years and is still a popular choice to be installed based on its great reliability of over 50,000 work cycles (1 sec. On, 4 sec. Off). Versions...
Horn K91
12 V, 335 Hz (low frequency), 112 dB
Diese klassische Hupe ist seit über 20 Jahren erhältlich und wird aufgrund ihrer hohen Zuverlässigkeit mit über 50.000 Arbeitszyklen (1 Sek. an, 4 Sek. aus) nach wie vor gerne an vielen Fahrzeugen verbaut. Varianten für 48 V oder 80 V Betriebsspannung eignen sich vor allem für den Einbau in Elektrostaplern.
Factsheets
Standards
Operating voltage [V], nominal 12
Power consumption [W] 48
Temperature range [° C] -20 to 80
Standards EC, ECE (Reg. 28), 93/30 EEC, 70/388 EEC
Output
Temperature range [° C] -20 to 80
Volume [dB] 112
Frequency, revolutions [Hz, rpm, fpm] 335
Lifespan >50,000 work cycles
