Model 710 Dual Beam

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
A light that follows the load? The work light model 710 is the specialist for use on high shelves. Two separately controlled light modules allow optimal illumination of the workplace. With them, a...

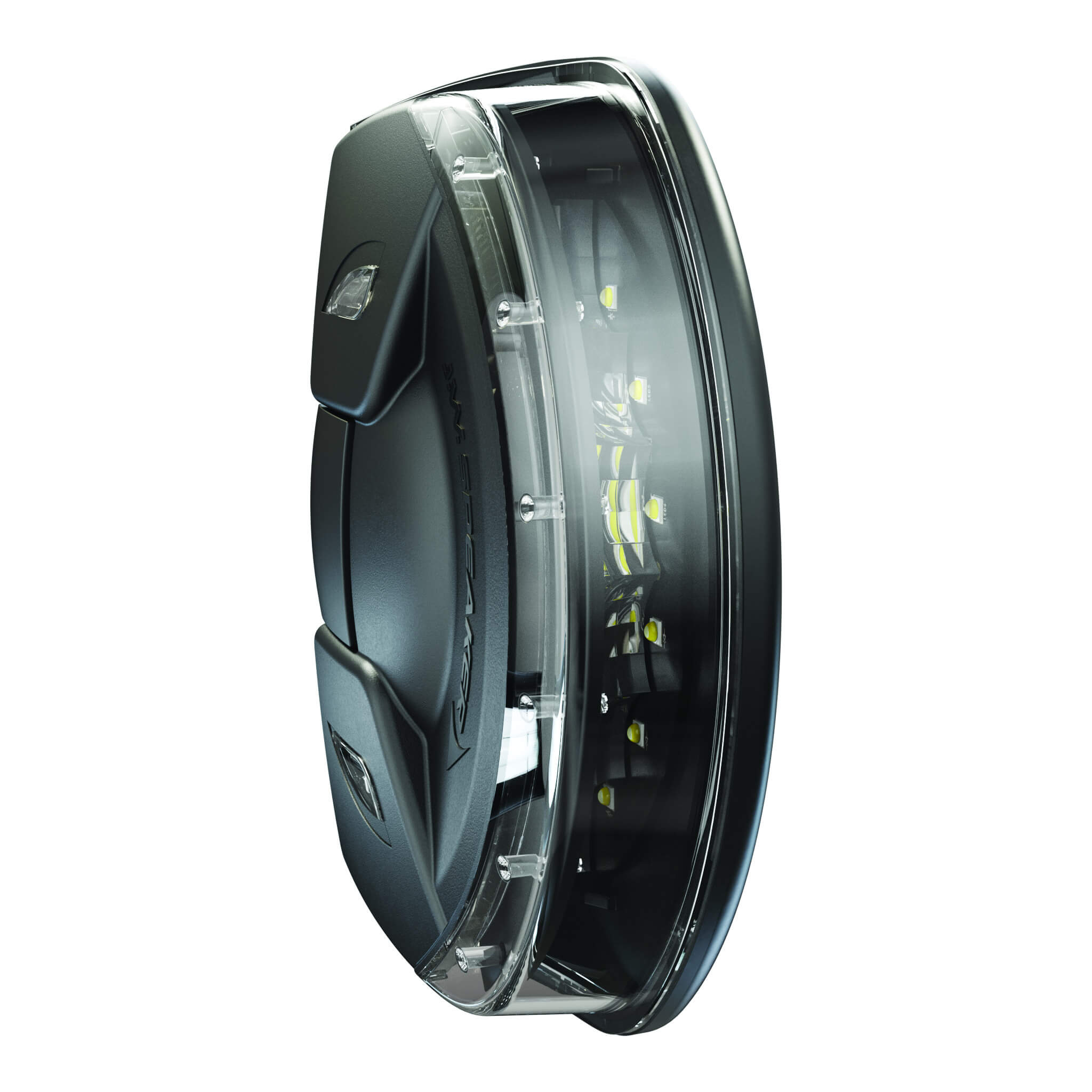

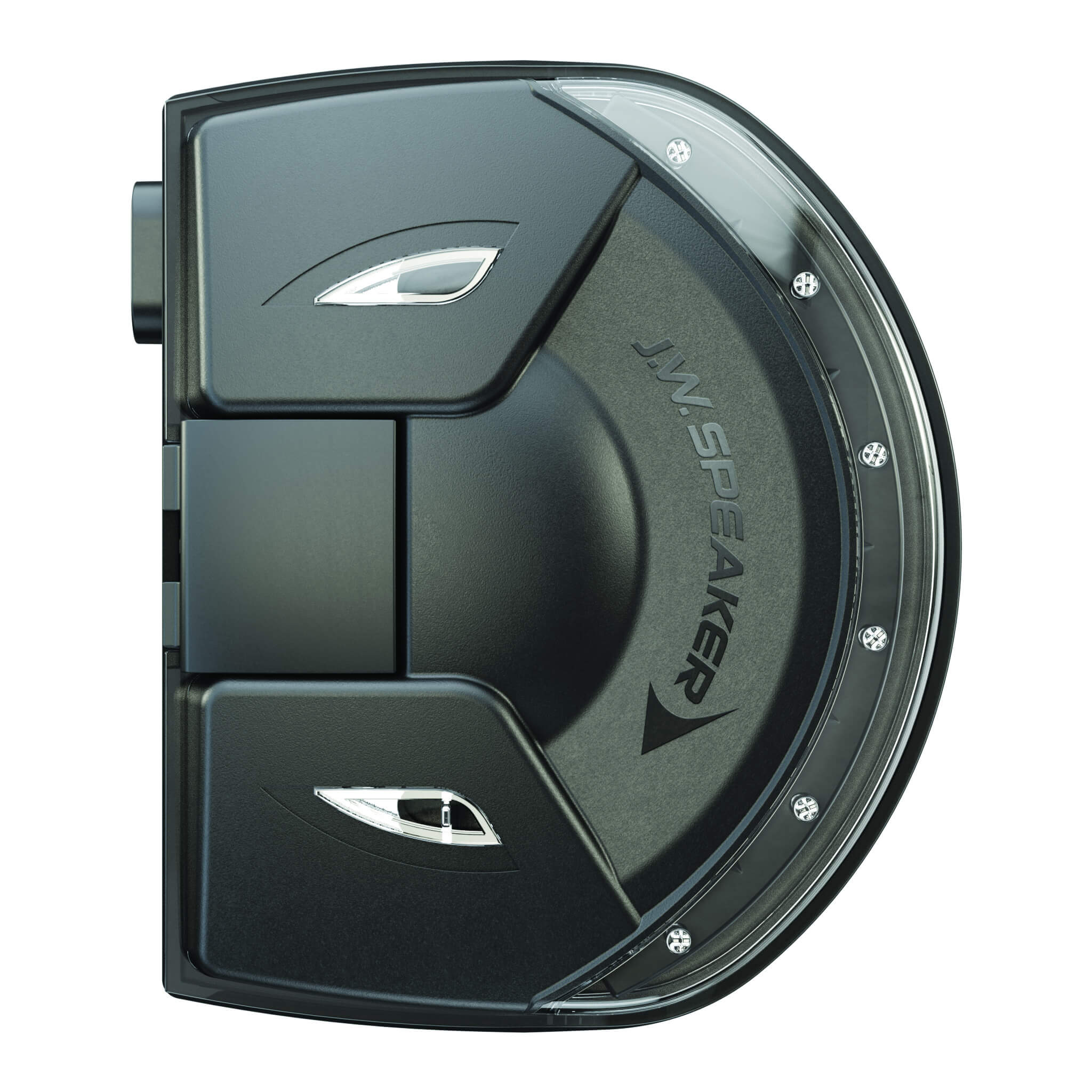

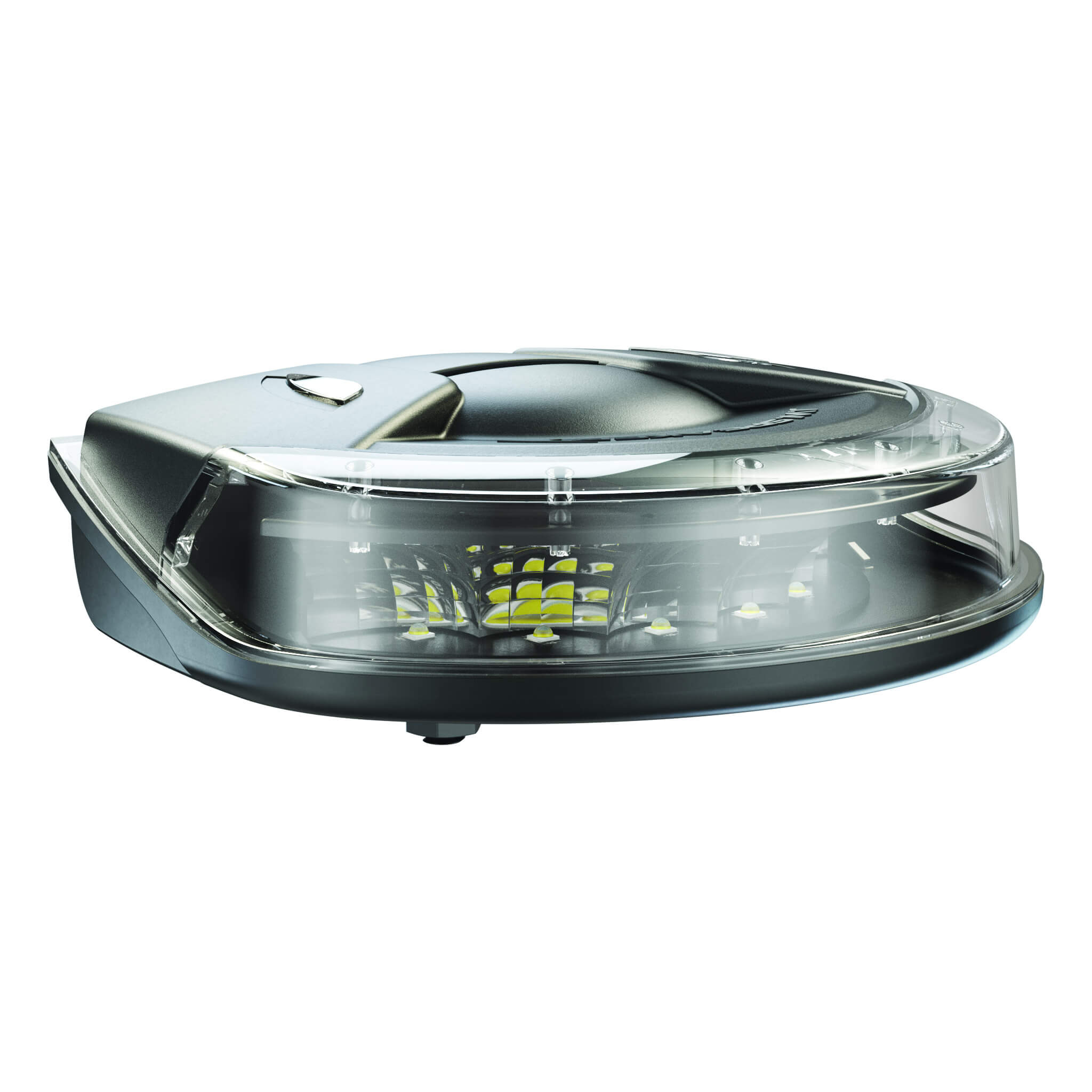

Model 710 Dual Beam
12-110 V, 1600/780 lm, Dual Beam, Delphi MP
A light that follows the load?

The work light model 710 is the specialist for use on high shelves. Two separately controlled light modules allow optimal illumination of the workplace. With them, a full 160° vertical illumination can be achieved. Of course only when it is necessary.

In normal operation, the lower 3 LEDs are on and illuminate the work area in front of the forklift with 780 effective lumens. But when lifting the load, the second, upper module can be added. Now the work light shines with a full 1600 lumens, with the second module emitting the light upwards.

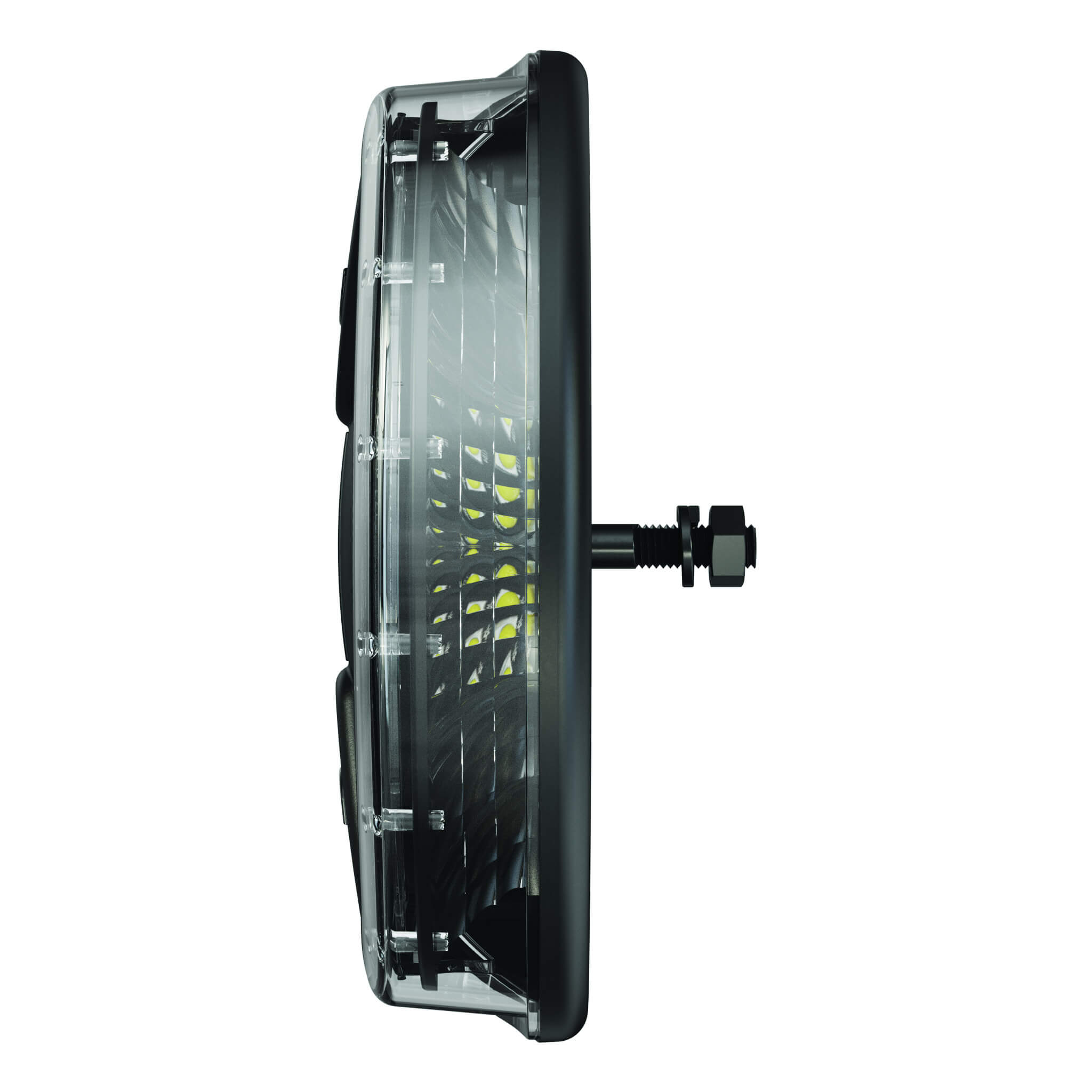

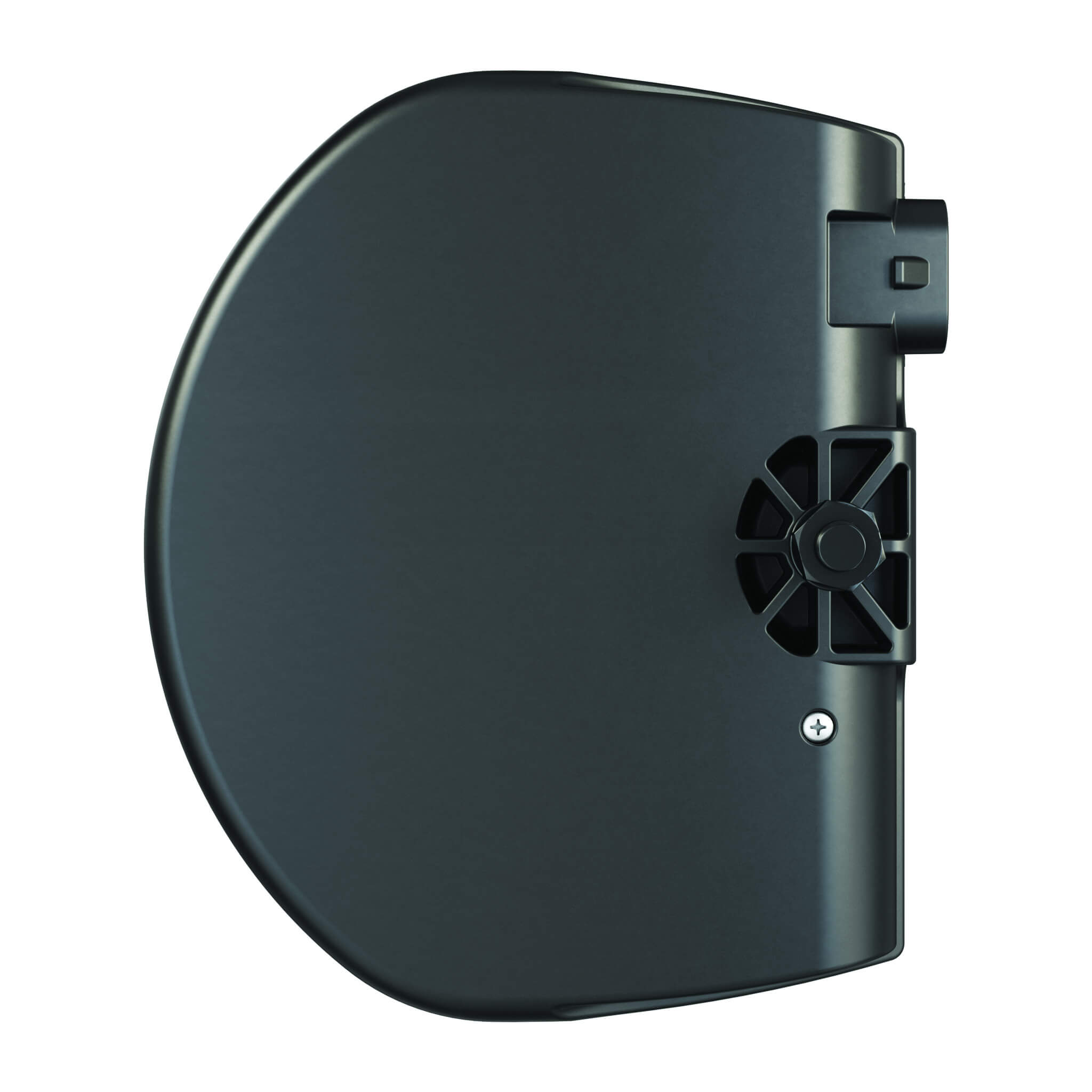

The lightweight model 710 impresses with its narrow contour and is ideal for mounting on the mast. The headlamp has no separate mounting bracket, so that a simple attachment via screw or stud is possible.

Model 710 is so light that it can also be attached via Click-Bond. That is, no drilling or welding on the mast, no change in the structure. A high strength adhesive bolt is sold separately.
Factsheets
Standards
Operating voltage [V], nominal 12-110
Operating voltage [V], functional 9-110
Power consumption [W] 18.48-22 (3 LEDs), 19.8-25.3 (6 LEDs)
Protection class IP67
Standards UL, SAE (J1113-4, J1113-13, J1113-21), CISPR (12)
Transient protection 330 V @ 1 Hz-100 pulses
Output
Brightness [lm], theoretically 1630 / 2000 (3/6 LEDs)
Brightness [lm], eff. 780 / 1600 (3/6 LEDs)
Performance class 1000 to 3000 lm eff.
Beam pattern / lens Spez. Hubmast-Lichtbild / 160° Ausleuchtung
Mounting

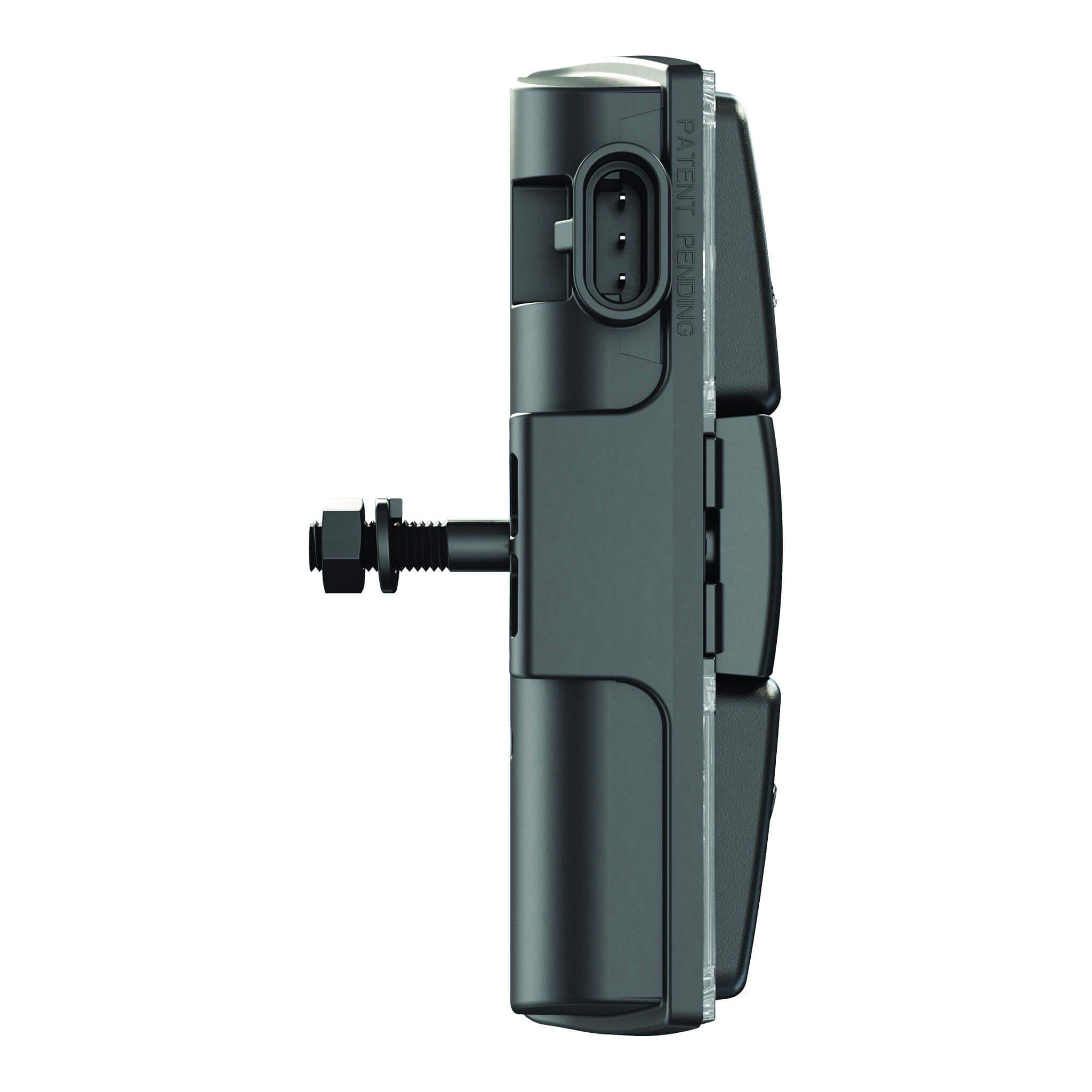

Connector Delphi MP150-3M (12129615)
Mating connector Delphi MP150-3F (12110293)
Mounting Spec. mounting bracket/Click-Bond
Reverse polarity protection 1
Functions
