Preview: SS-134_Startschalter_471503.jpg

Item no.: SS-134-71503

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

This special variant of the start key switch offers 3 positions, for example, to set e.g. the speed of the truck (turtle and rabbit) or two different operating modes. Accessories (not included):...

Close menu

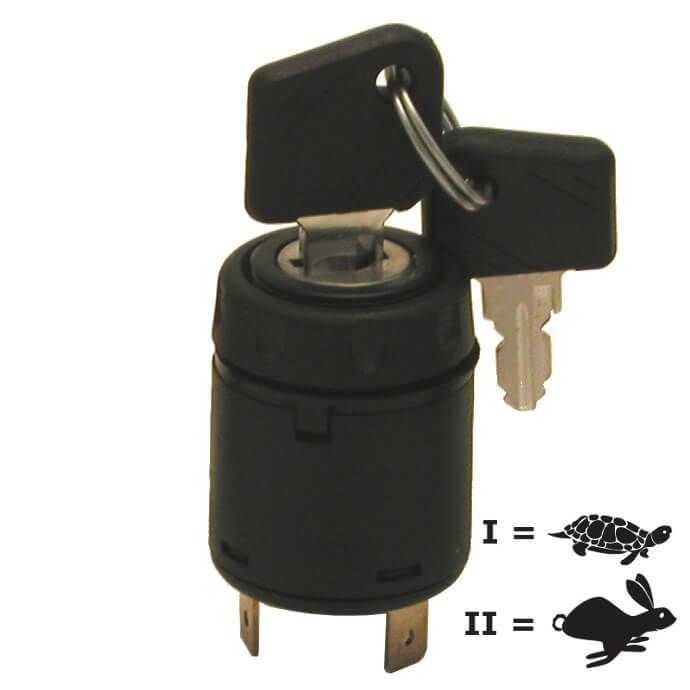

Start key switch 471503

key code 503, with 3 positions

This special variant of the start key switch offers 3 positions, for example, to set e.g. the speed of the truck (turtle and rabbit) or two different operating modes.

Accessories (not included):

Dust protection cap, torsion protection, adapter for a diameter of 26 mm, sets of spare keys.

Factsheets

Standards

Operating voltage [V], nominal	12-80
Temperature range [° C]	-40 to 90
Protection class	IP54 (key side)
Resilience	Vibration 3 g 10-500 Hz, Salznebel 144 h, Feuchtigkeit 144 h (95%, 55 °C)

Output

Temperature range [° C]	-40 to 90
Lifespan	>50,000/<100,000 work cycles (electr./mechan.)

Miscellaneous

Closure	503
Positions	OFF-ON1-ON2 (two speeds)
Removable key	AUS-Position
