Model 8700 Evo-X

Model 8700 Evo-X

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
The Model 8700 Evo-X combines J.W. Speaker’s modern Evo-X design language with high-performance LED technology in the popular 7-inch format. The distinctive light signature ensures a consistent...
Model 8700 Evo-X

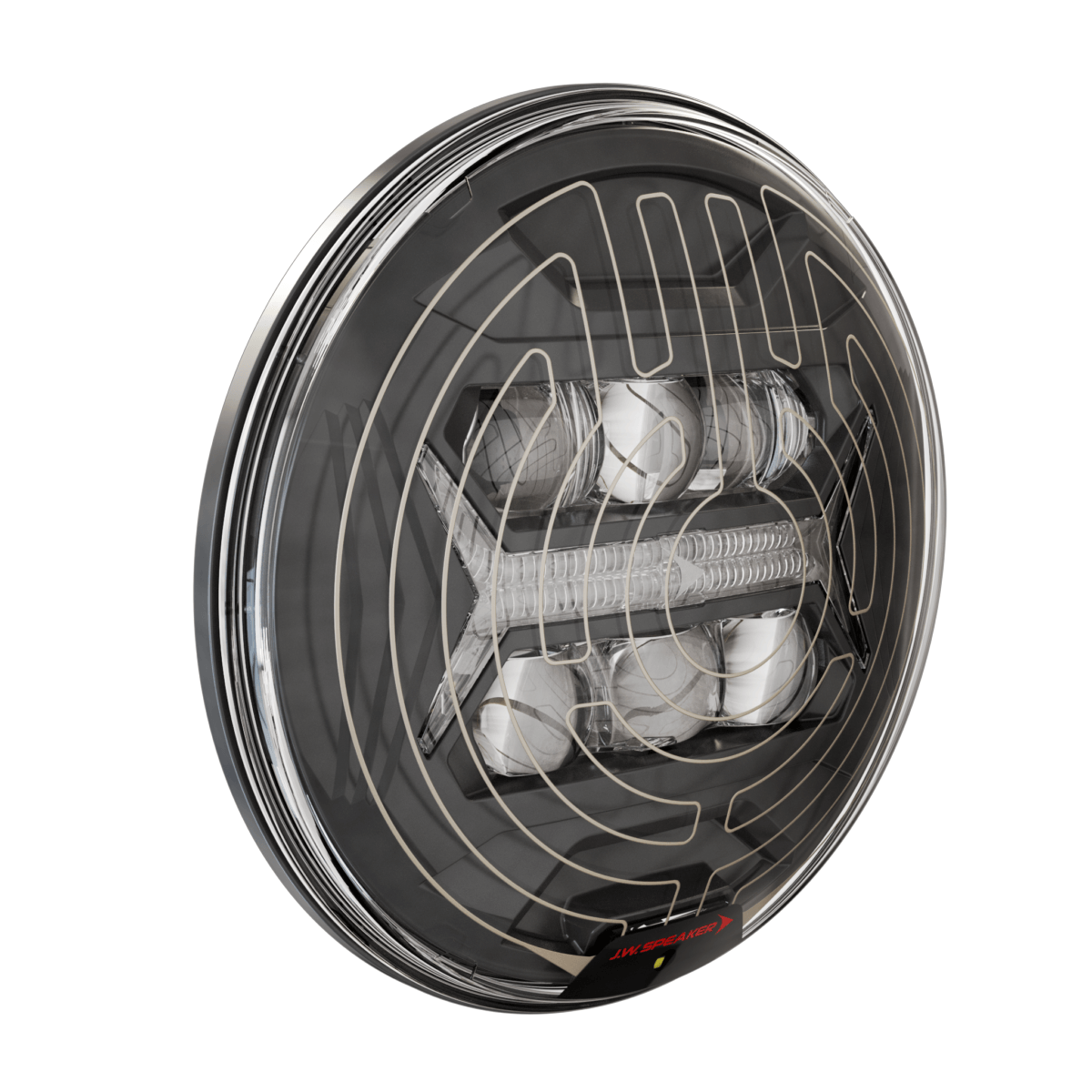

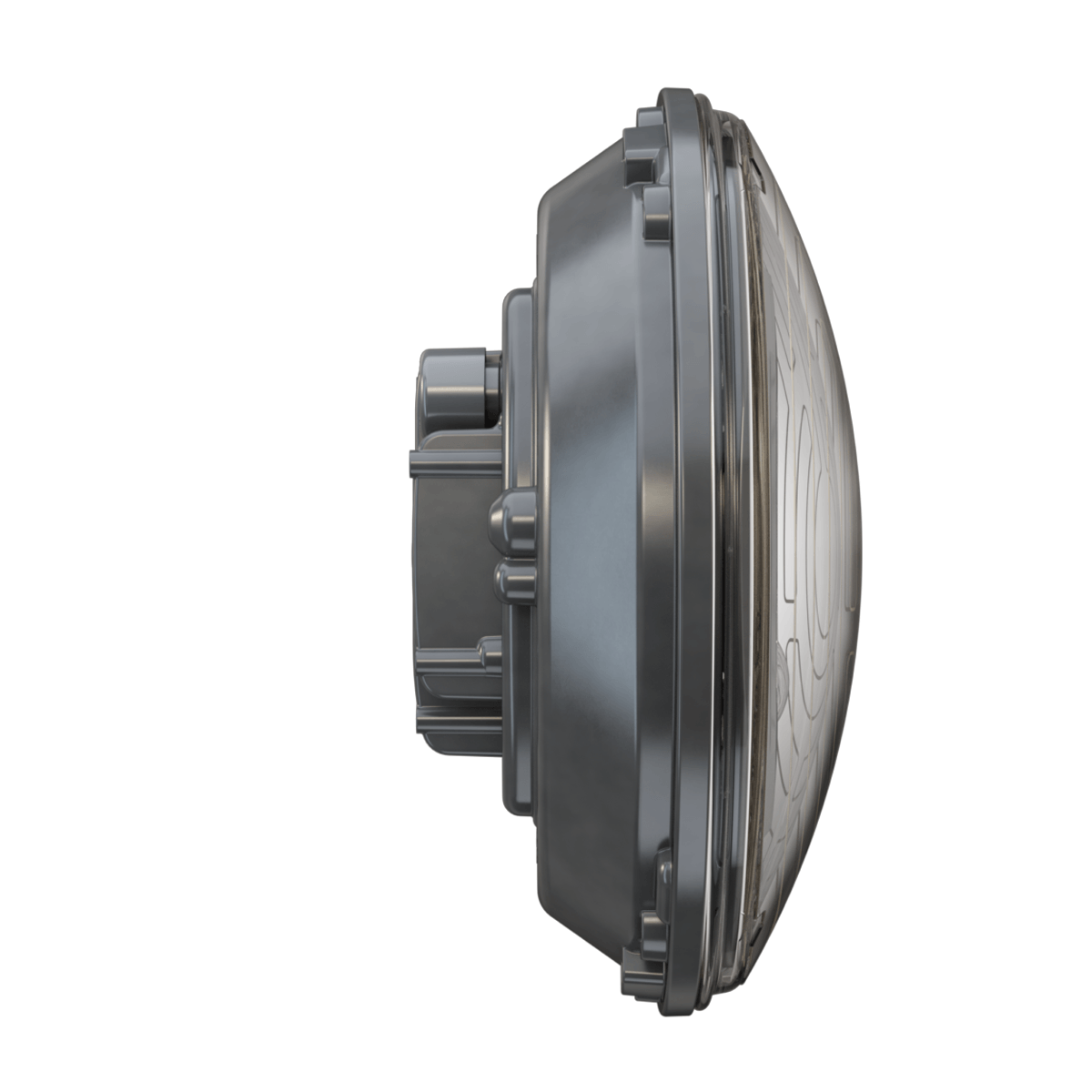

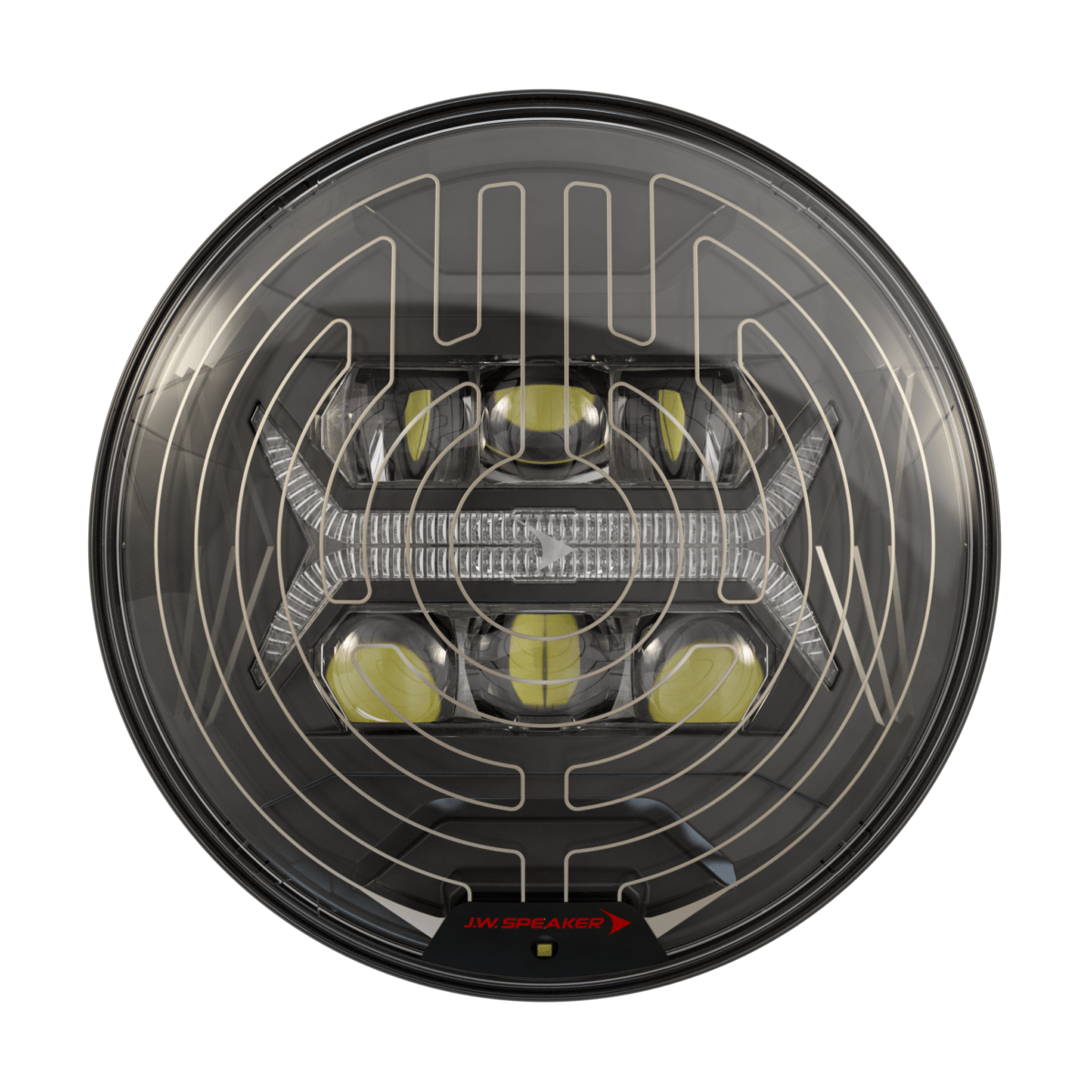

12-24 V, 5-in-1 headlight, ECE road approval, with heated lens, black bezel
The Model 8700 Evo-X combines J.W. Speaker’s modern Evo-X design language with high-performance LED technology in the popular 7-inch format. The distinctive light signature ensures a consistent look across the Evo-X series and gives vehicles a modern, striking front appearance.

The optimized light distribution provides wide illumination of the near field as well as a long range in high beam mode. Thanks to Dual Burn technology, low and high beams remain active simultaneously, creating a particularly homogeneous light pattern. The Model 8700 Evo-X is also available with optional SmartHeat lens heating.

The Evo-X series includes various models to meet different requirements. These include versions with black or chrome-plated inner housings, heated SmartHeat models, as well as various approval and connection options for international vehicle platforms.

Model 8700 Evo-X was developed for demanding applications and impresses with its robust construction, high vibration resistance, and reliable performance in daily use on roads, construction sites, or off-road trails.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-32
Power consumption [W] 63.5–103.9 (low), 92.6–129.8 (high), 3.1–3.6 (front positions), 68.6–107.5 (DRL)
Temperature range [° C] -40 to 65
Protection class IP67 & IP69K
Standards ECE (R148-1b, R148-A, R148-RL, R149-C, R149-HR), FMVSS 108, SAE (J1383, J2087, J222)
EMC (electromagnetic compatibility) ECE (Reg. 10)
Output
Brightness [lm], theoretically 2330 (Abblendl.), 3740 (Fernl.)
Brightness [lm], eff. 690 (Abblendl.), 1310 (Fernl.)
Brightness [cd] 57700
Temperature range [° C] -40 to 65
Mounting
Connector Deutsch plug (DT04-6P), integrated
Mating connector Deutsch plug (DT06-6S)
Mounting Built-in
Installation dimensions / diameter [mm] 176,5
Reverse polarity protection Yes
Functions
Low beam
High beam
Daytime running lights
Parking light
Turn signal
Road approval
