Item no.: FS-1396-51341

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Straßenzugelassene Komplett-Lösung für Industriefahrzeuge. Ursprünglich wurde Modell 9800 als Aufbau-Fahrscheinwerfer für die Montage über Räumschilden entwickelt. Aber der Einsatz beschränkt sich...

Close menu

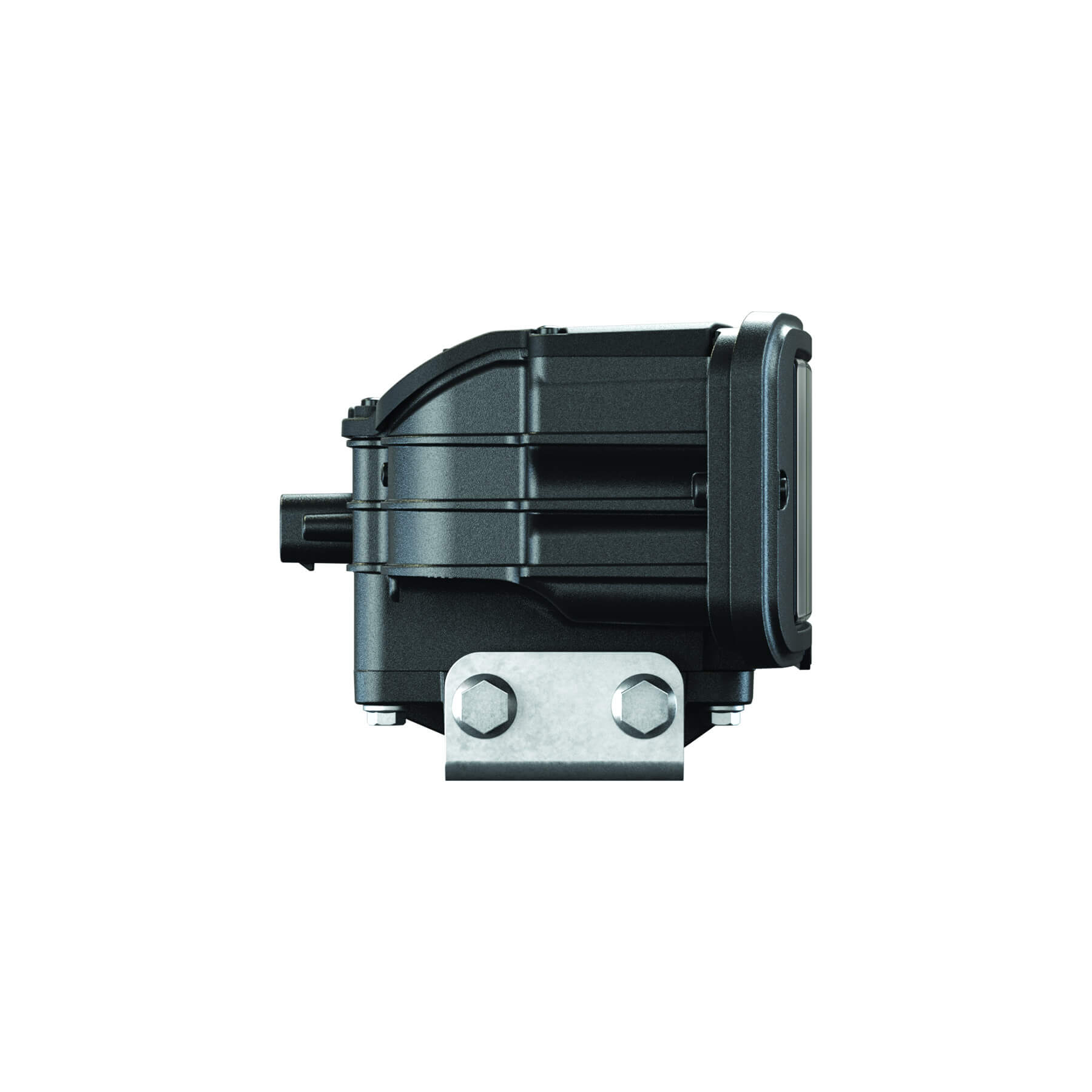

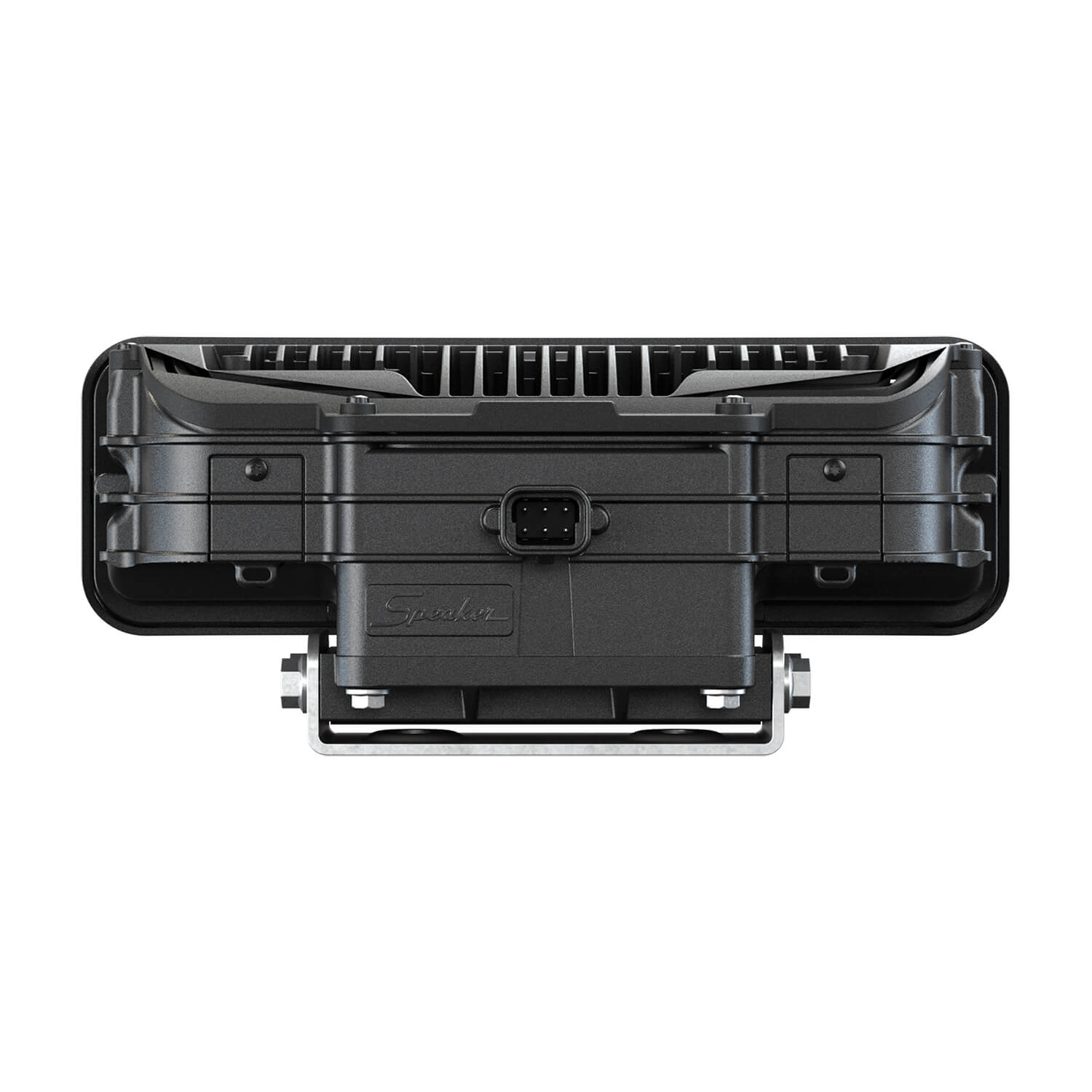

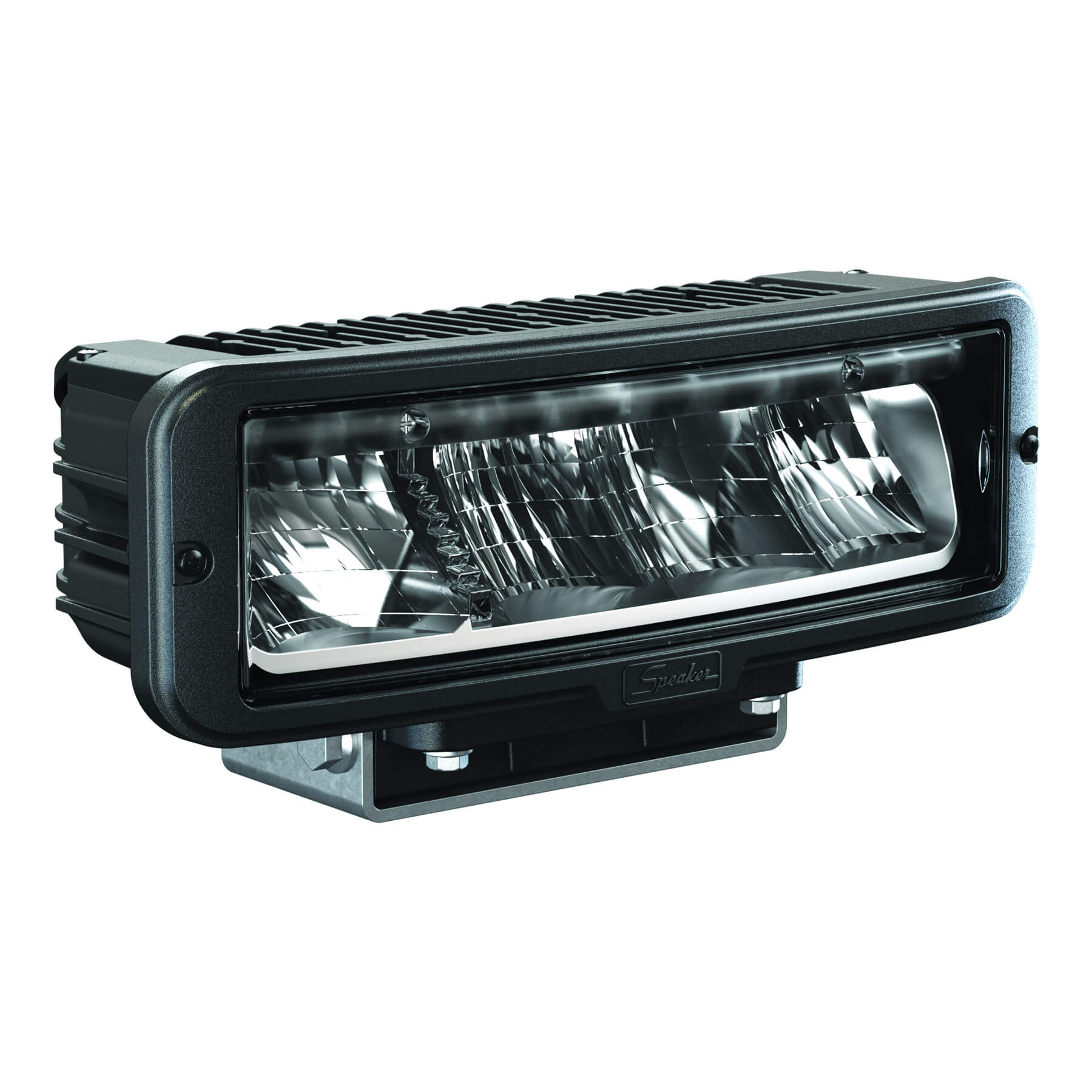

LED-Fahrscheinwerfer Modell 9800

12-24 V, low and high beam, daytime running light, with front posiition, with turn signal, ECE road approval (Reg. 6, 7, 112), left head light, RHT

Road approved solution for all industrial vehicles.

This light has originally been developed for the use on plow trucks. But this is of course not limiting its use.

Model 9800 is a complete solution for vehicles that need to be equipped for the street legal. In this headlight, all functions for the vehicle front are united: low and high beam, daytime running light and front position as well as a turn signal. Of course, all approved according to ECE.

For harsh winters there is also a variant with a heated lens.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-32
Power consumption [W]	32.4 (low), 43.2 (high), <0.12 (DRL), 10.2 (turn), <0.12 (position)
Protection class	IP67
Standards	ECE (Reg. 6, 7, 87, 112)
REACH	Yes

Output

Brightness [lm], theoretically	2115 (Abblendl.), 2835 (Fernl.)
Brightness [lm], eff.	785 (Abblendl.), 1135 (Fernl.)
Brightness [cd]	52000
Beam pattern / lens	Abblend- und Fernlicht, Tagfahrlicht, Fahrtrichtungsanzeiger
