Model 894

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
J.W. Speaker's compact LED work lights form a separate product family that is instantly recognizable thanks to its distinctive ice cube lens design. All models combine high light output, durable...

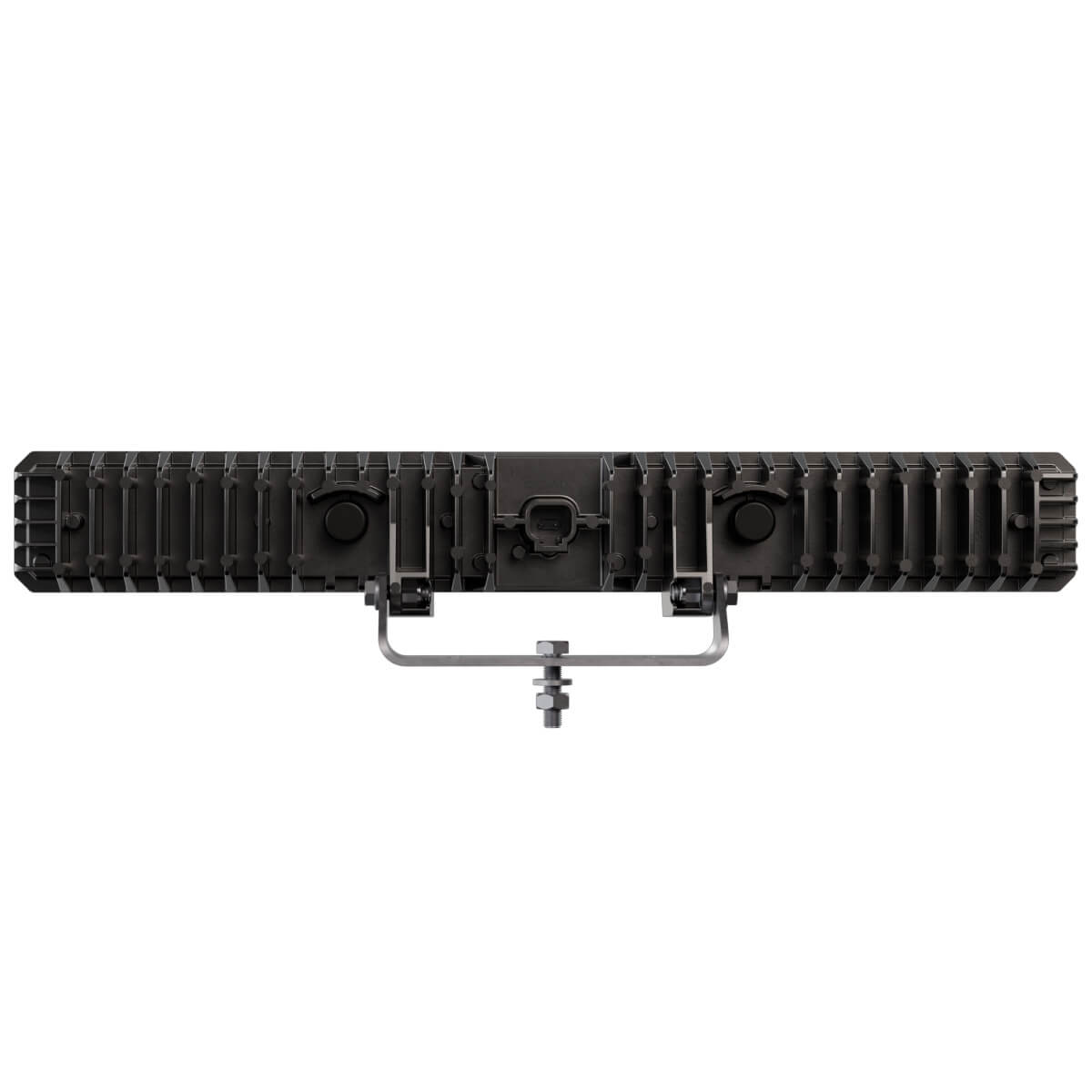

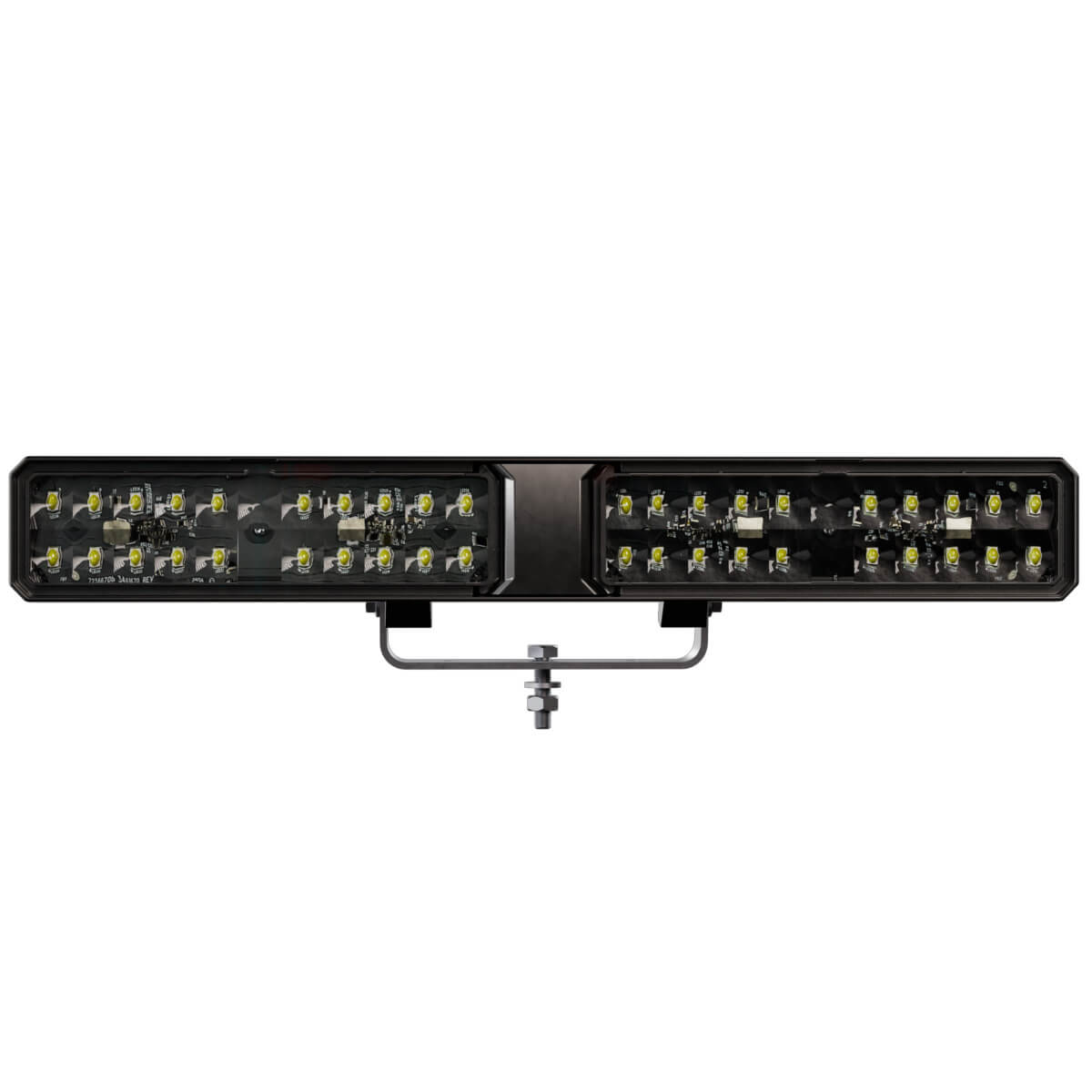

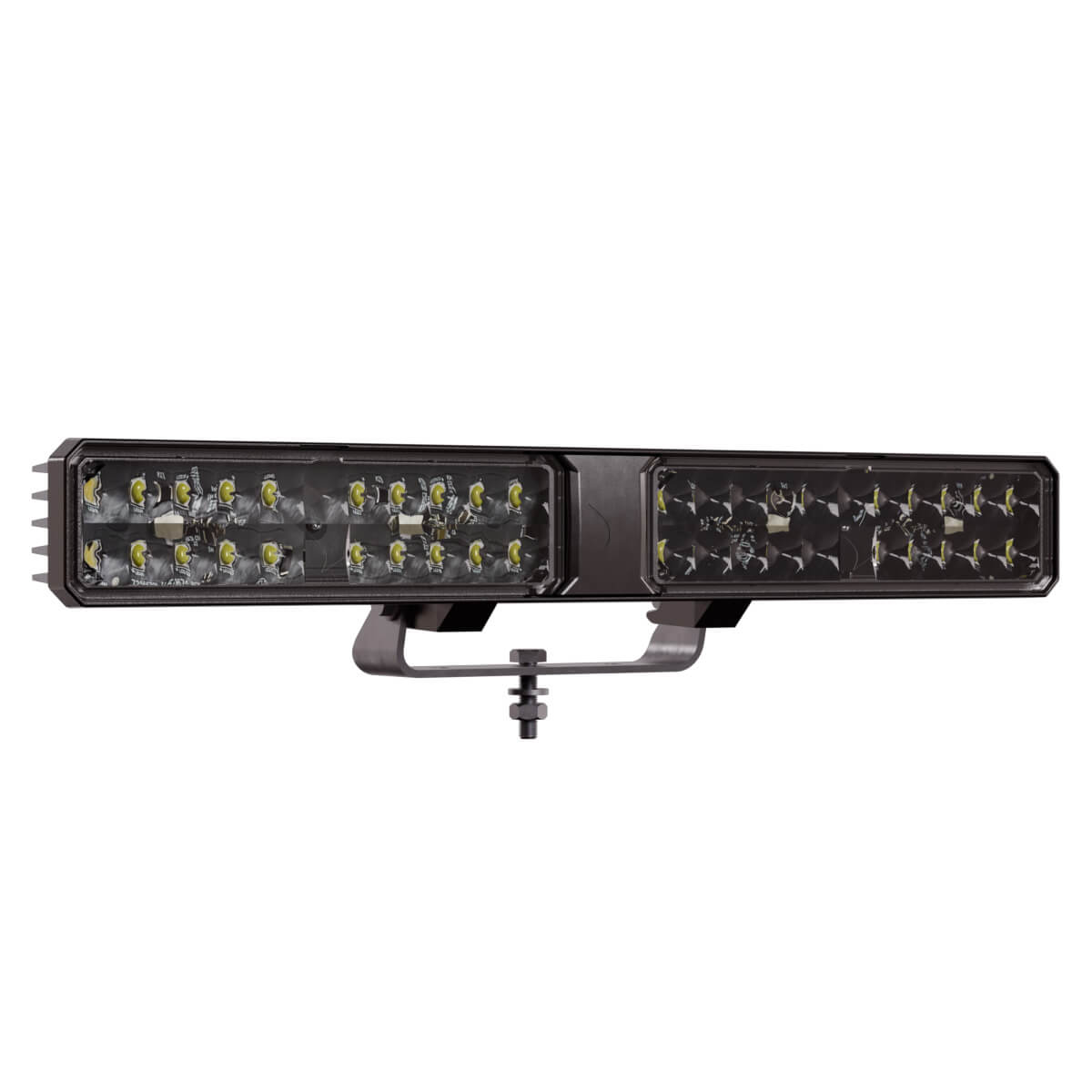

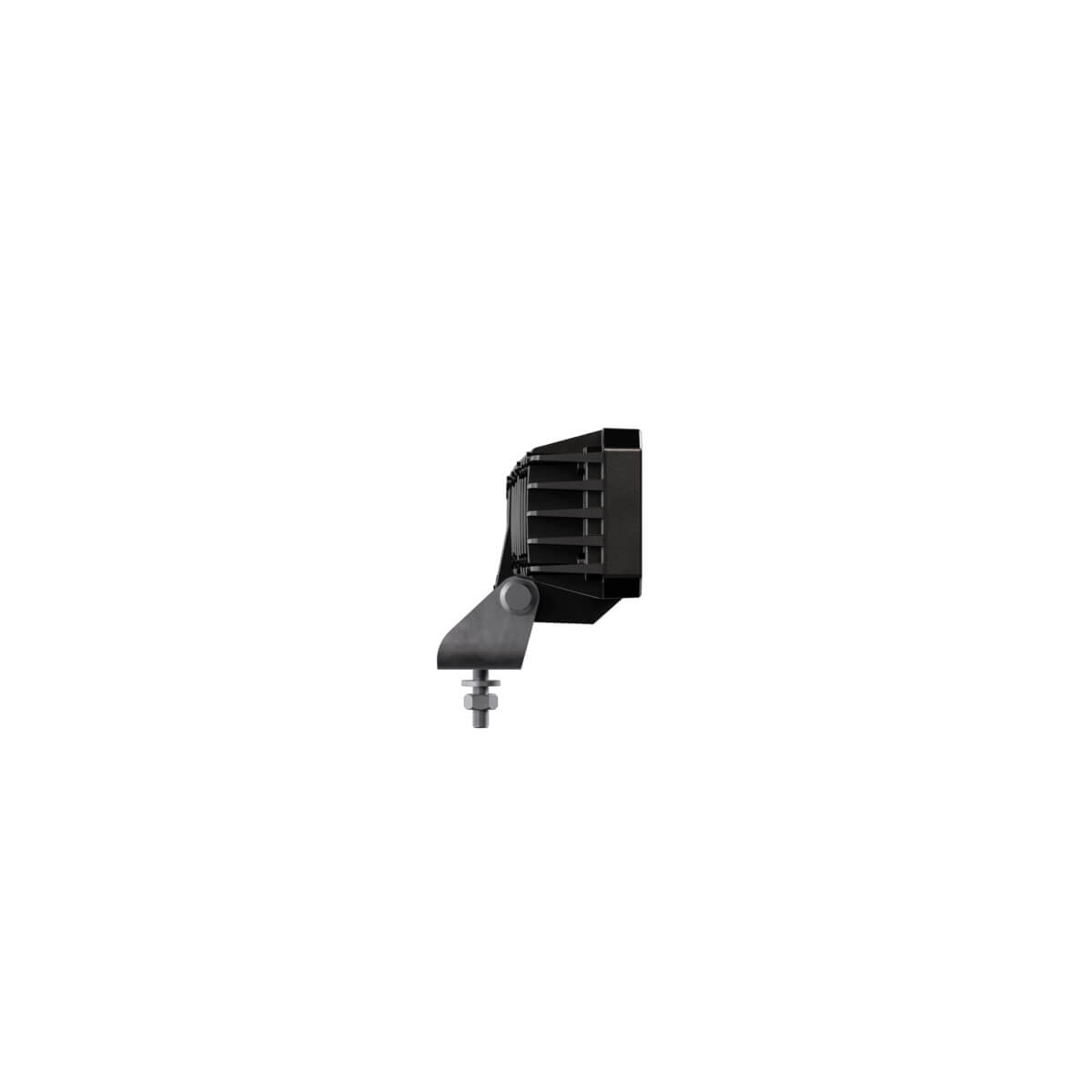

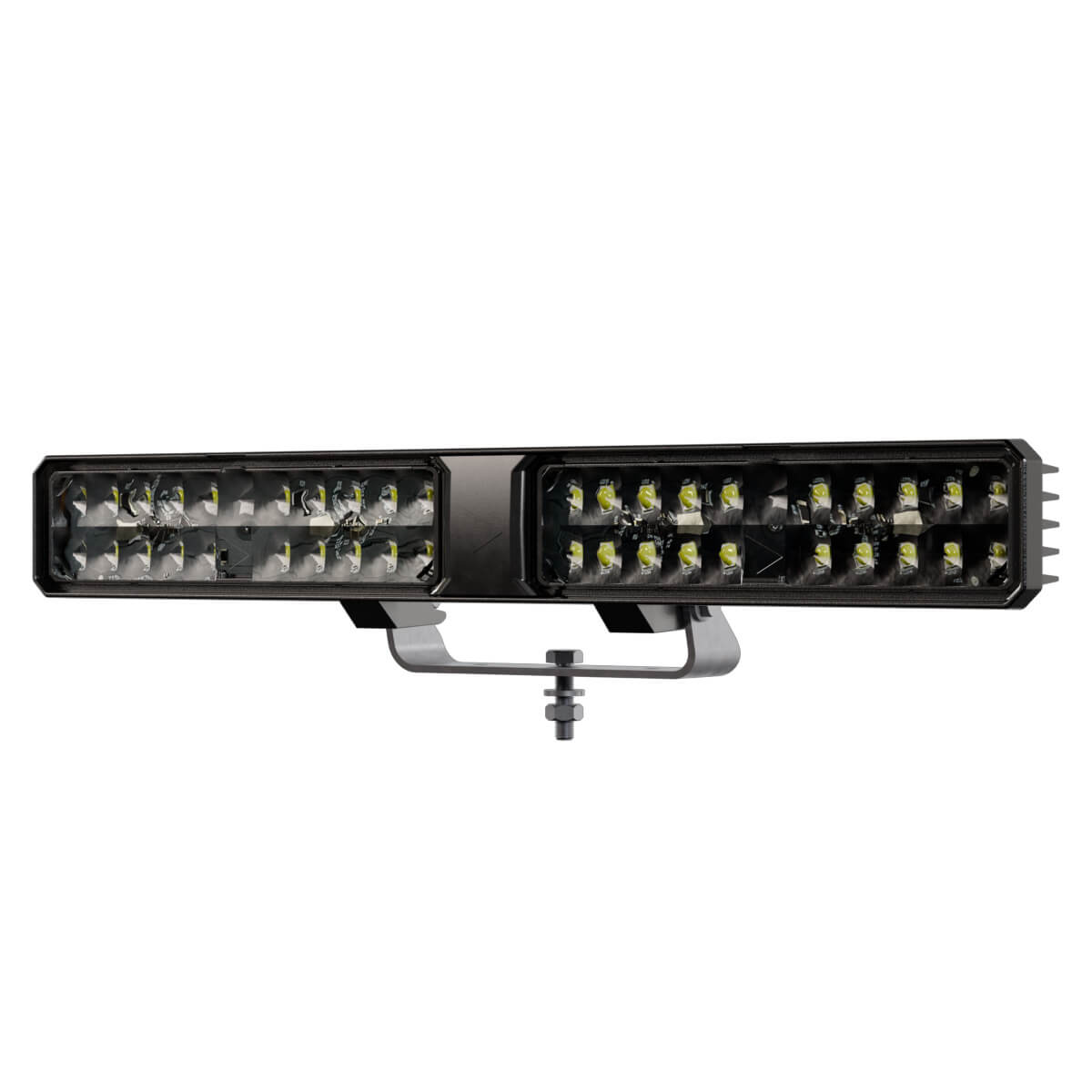

Model 894
12-24 V, flood
J.W. Speaker's compact LED work lights form a separate product family that is instantly recognizable thanks to its distinctive ice cube lens design. All models combine high light output, durable materials, and a compact design that allows for flexible mounting even in confined spaces.

The die-cast aluminum housing ensures optimal heat dissipation and high resistance to vibration, moisture, and corrosion. An impact-resistant polycarbonate lens permanently protects the precise LED optics from stone chips and environmental influences.

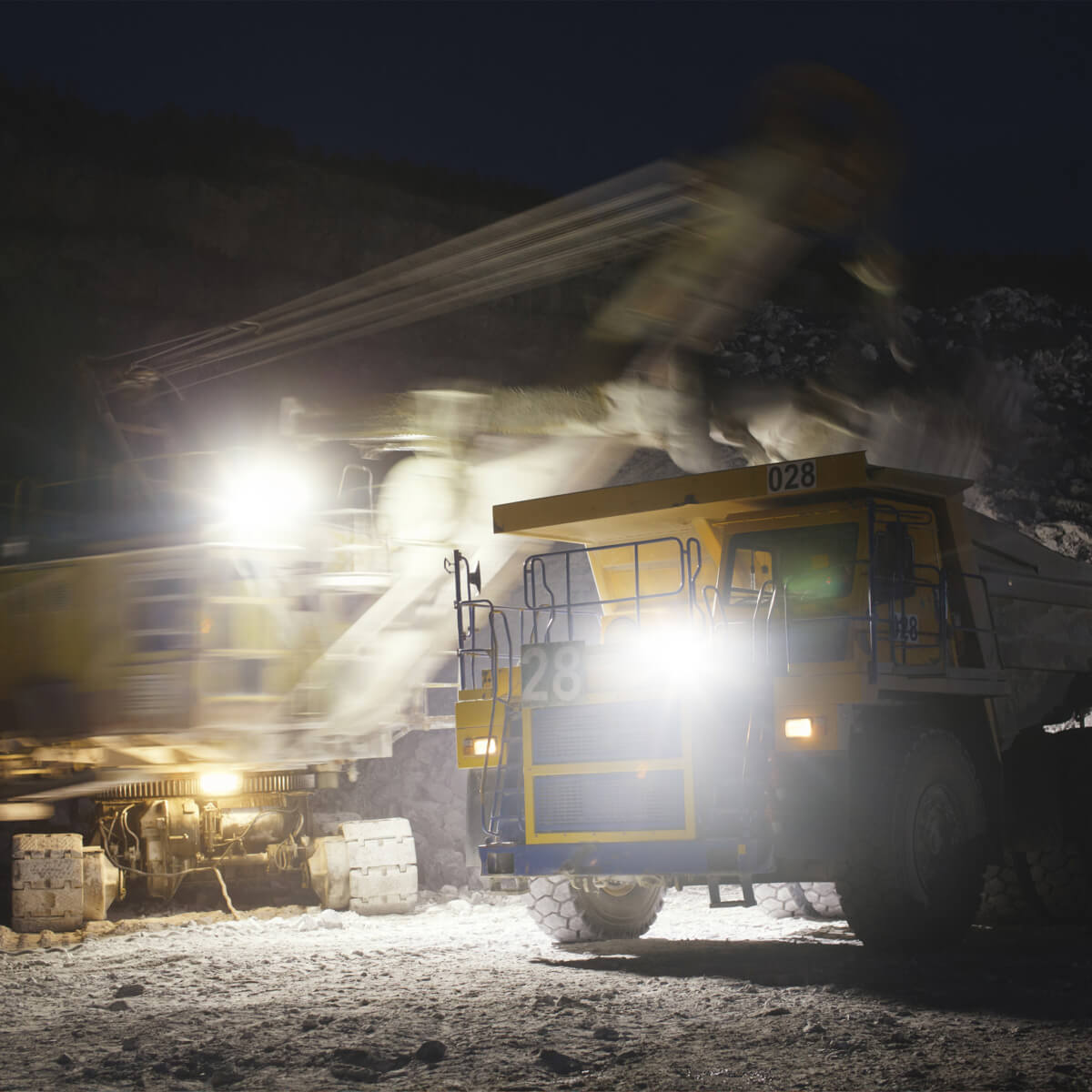

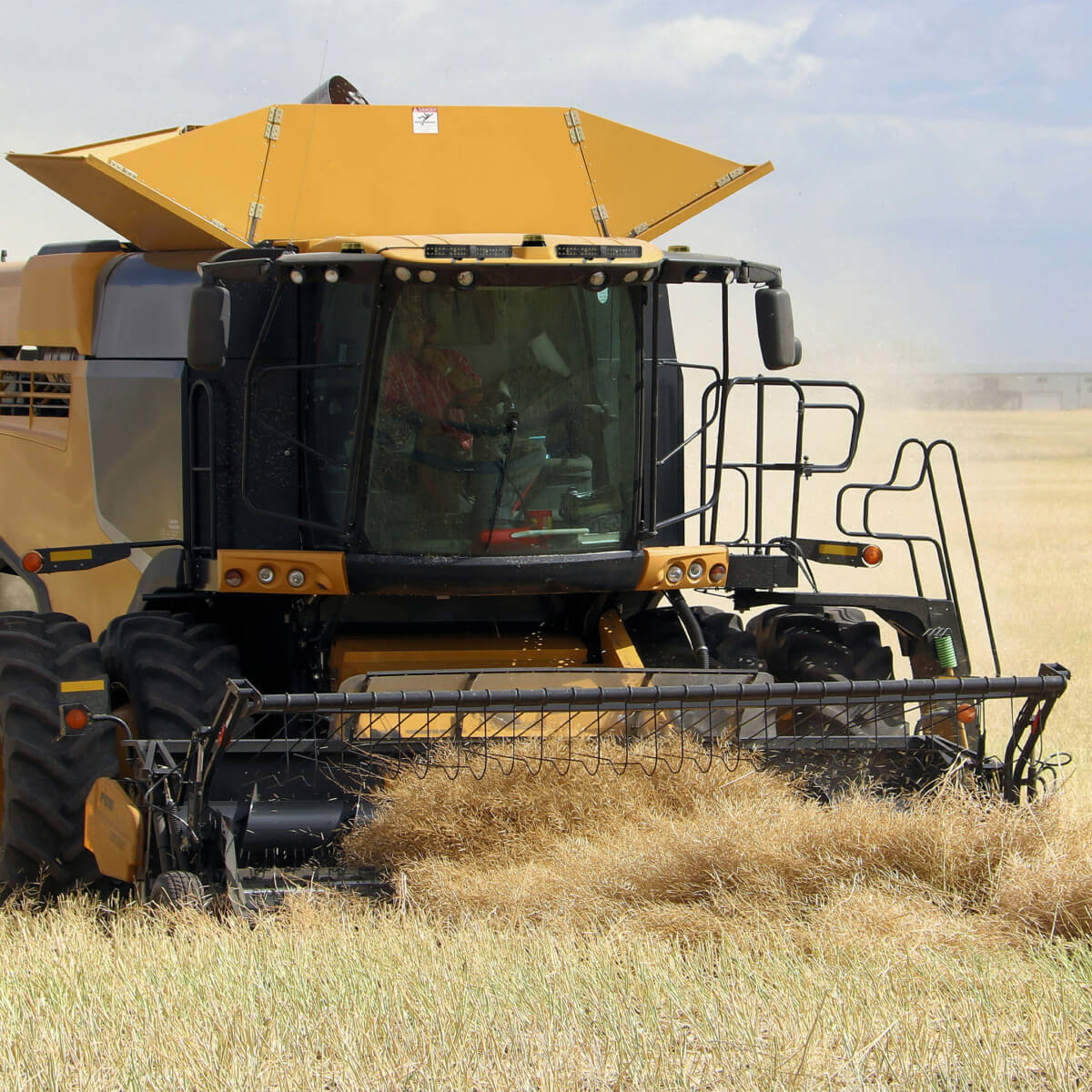

All models in this spotlight family produce a homogeneous, daylight-like working light that provides a clear view of the work area, whether in darkness, fog, or rain. All models are ECE and EMC compliant and are equally suitable for use on commercial vehicles, agricultural machinery, construction machinery, and municipal vehicles.

Thanks to different designs, light distributions, and power classes, each headlight in the series can be optimally adapted to the respective application, so you get exactly the light you need, from compact installation solutions to powerful auxiliary headlights.

Model 894 delivers a whopping 7,750 effective lumens. This makes this model the high-output version of the compact series. Despite its high performance, it retains its compact design and meets protection classes IP67/IP69K. Compared to the other models, the 894 stands for maximum light output in a compact format, making it ideal for very large work areas or machines with high lighting requirements.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-30
Power consumption [W] 108-96
Temperature range [° C] -40 to 85
Protection class IP67 & IP69K
Standards CE
Output
Brightness [lm], theoretically 14000
Brightness [lm], eff. 7750
Brightness [cd] 17450
Temperature range [° C] -40 to 85
Mounting
Connector Deutsch plug (DT04-2P)
Mating connector Deutsch plug (DT06-2S)
Mounting Universal mount, 5/16"
Reverse polarity protection 1
Functions
Flood
