J.W. Speaker's compact LED work lights form a separate product family that is instantly recognizable thanks to its distinctive ice cube lens design. All models combine high light output, durable...

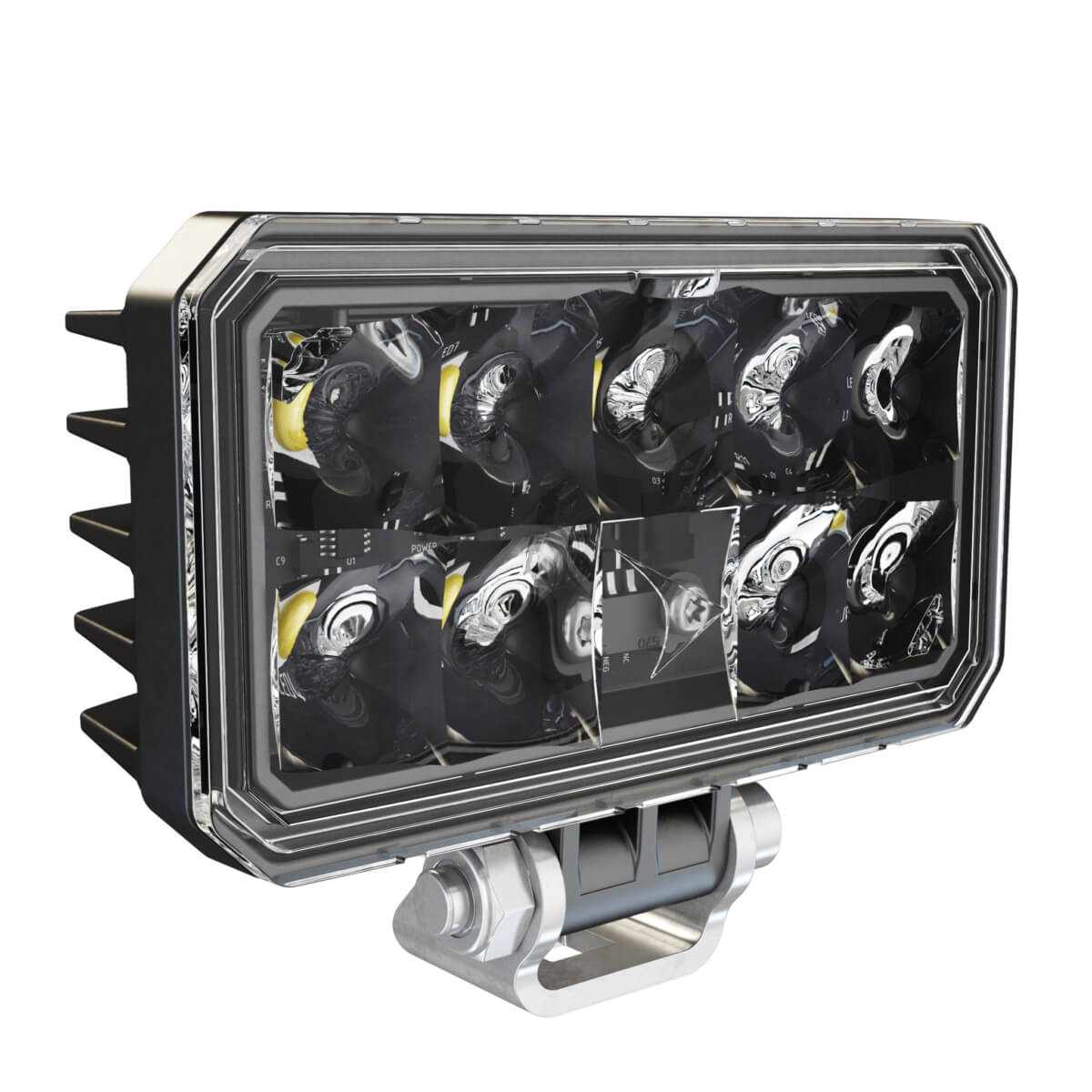

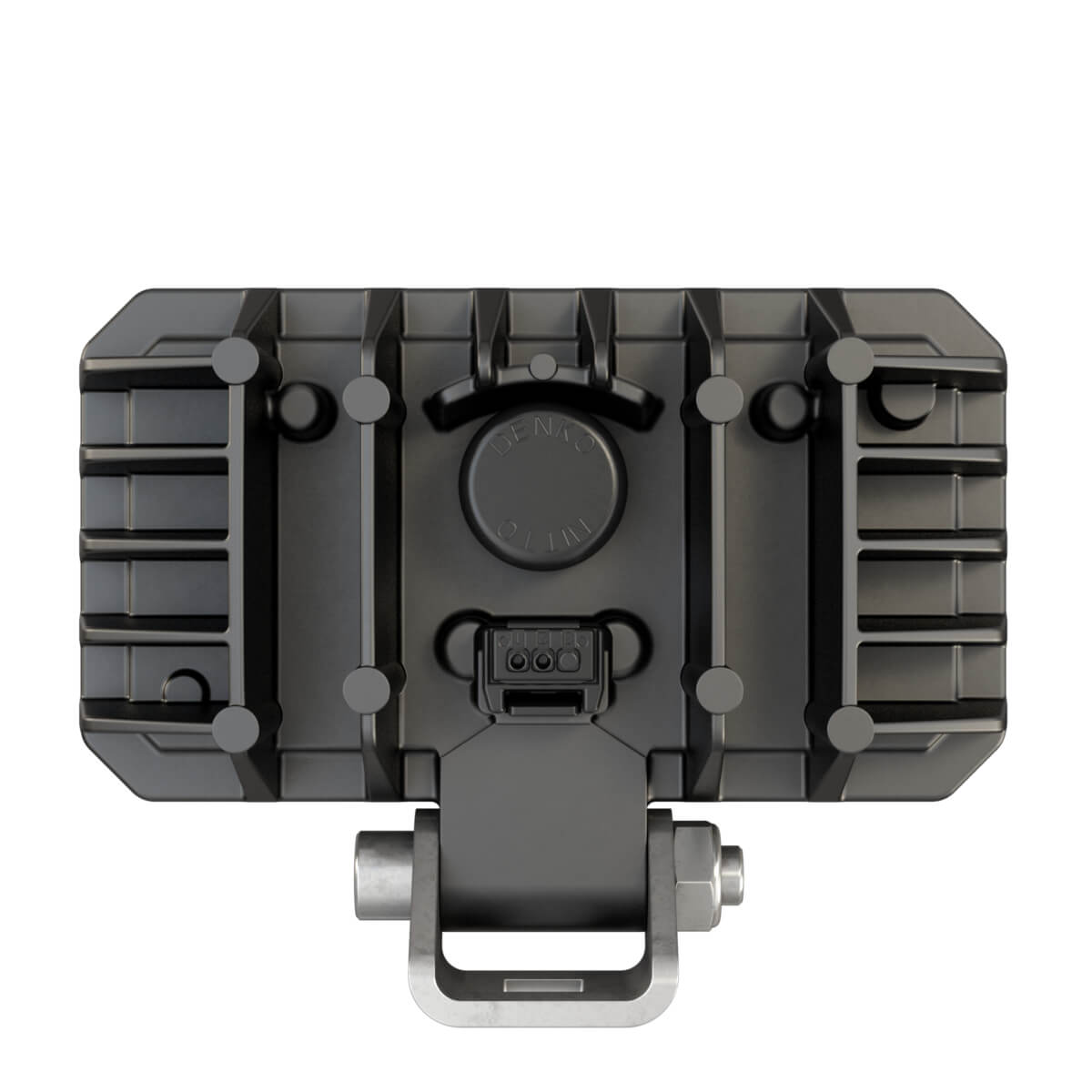

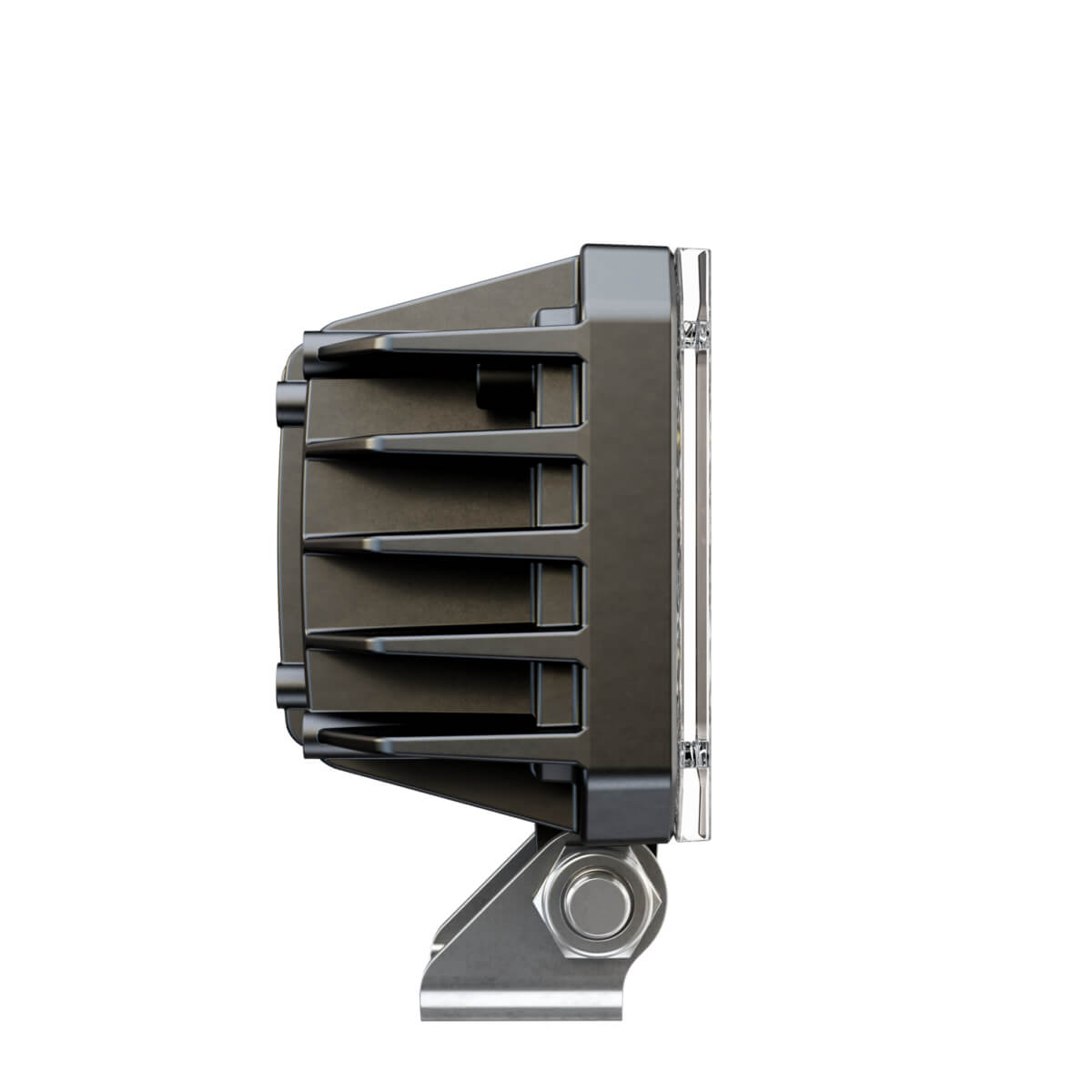

Model 792
12-24 V, flood, pedestal-mount
J.W. Speaker's compact LED work lights form a separate product family that is instantly recognizable thanks to its distinctive ice cube lens design. All models combine high light output, durable materials, and a compact design that allows for flexible mounting even in confined spaces.

The die-cast aluminum housing ensures optimal heat dissipation and high resistance to vibration, moisture, and corrosion. An impact-resistant polycarbonate lens permanently protects the precise LED optics from stone chips and environmental influences.

All models in this spotlight family produce a homogeneous, daylight-like working light that provides a clear view of the work area, whether in darkness, fog, or rain. All models are ECE and EMC compliant and are equally suitable for use on commercial vehicles, agricultural machinery, construction machinery, and municipal vehicles.

Thanks to different designs, light distributions, and power classes, each headlight in the series can be optimally adapted to the respective application, so you get exactly the light you need, from compact installation solutions to powerful auxiliary headlights.

Model 792 is the smallest and lightest work light in this family. With around 2,000 effective lumens, it offers impressive light output with minimal energy consumption. It is ideal for tight installation locations or applications where additional lighting is required without changing the vehicle line. Despite its size, it provides an evenly wide field of light, perfect for close-range areas and machine superstructures.

Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-30
Power consumption [W] 24-26.4
Temperature range [° C] -40 to 65
Protection class IP67 & IP69K
Transient protection 330 V @ 1 Hz-100 pulses
Output
Brightness [lm], theoretically 3630
Brightness [lm], eff. 2000
Brightness [cd] 2900
Performance class 1000 to 3000 lm eff.
Temperature range [° C] -40 to 65
Mounting
Connector JAE MX19A003S51, with flying leads
Mounting Universal mount
Reverse polarity protection 1
Functions
Flood
Narrow flood
