Light bar Model 9049-4M


Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Genuine high-power lamps produce lots of light, but it mostly involves a much higher housing volume. Specially for vehicles on which lights must not be fitted high or low, light bars can be of...

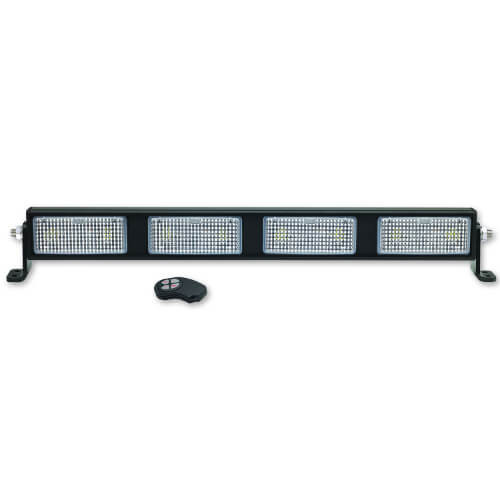

Light bar Model 9049-4M
4 modules, 12-24 V, 2,640 lm, flood
Genuine high-power lamps produce lots of light, but it mostly involves a much higher housing volume. Specially for vehicles on which lights must not be fitted high or low, light bars can be of great interest. In light bars, several small lamps are fitted next to each other and activated together. Light bars are thus able to emit surprising amounts of light.

Model 9049 is a modular light bar that provides plenty of room for variations.

• 2-6 modules

• 1320 to 3960 lm eff .

• Available in a programmable variant (with remote control)
Factsheets
Standards
Operating voltage [V], nominal 12-24
Power consumption [W] 96
Protection class IP67
EMC (electromagnetic compatibility) SAE (J1113)
Output
Brightness [lm], eff. 2640
Performance class 1000 to 3000 lm eff.
Beam pattern / lens Geländeausleuchtung
Mounting
Mounting Spec. mounting bracket
Installation dimensions / diameter [mm] 102,87 mm x 727,71 mm
Installation depth [mm] 93.22
Reverse polarity protection 1
Functions
Flood
