Item no.: AS-1185-84010

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

The housing of model 840 XD was modelled to the design of the classical square worklights. This means that model 840 can also be easily attached as a retrofit variant without the appearance of the...

Close menu

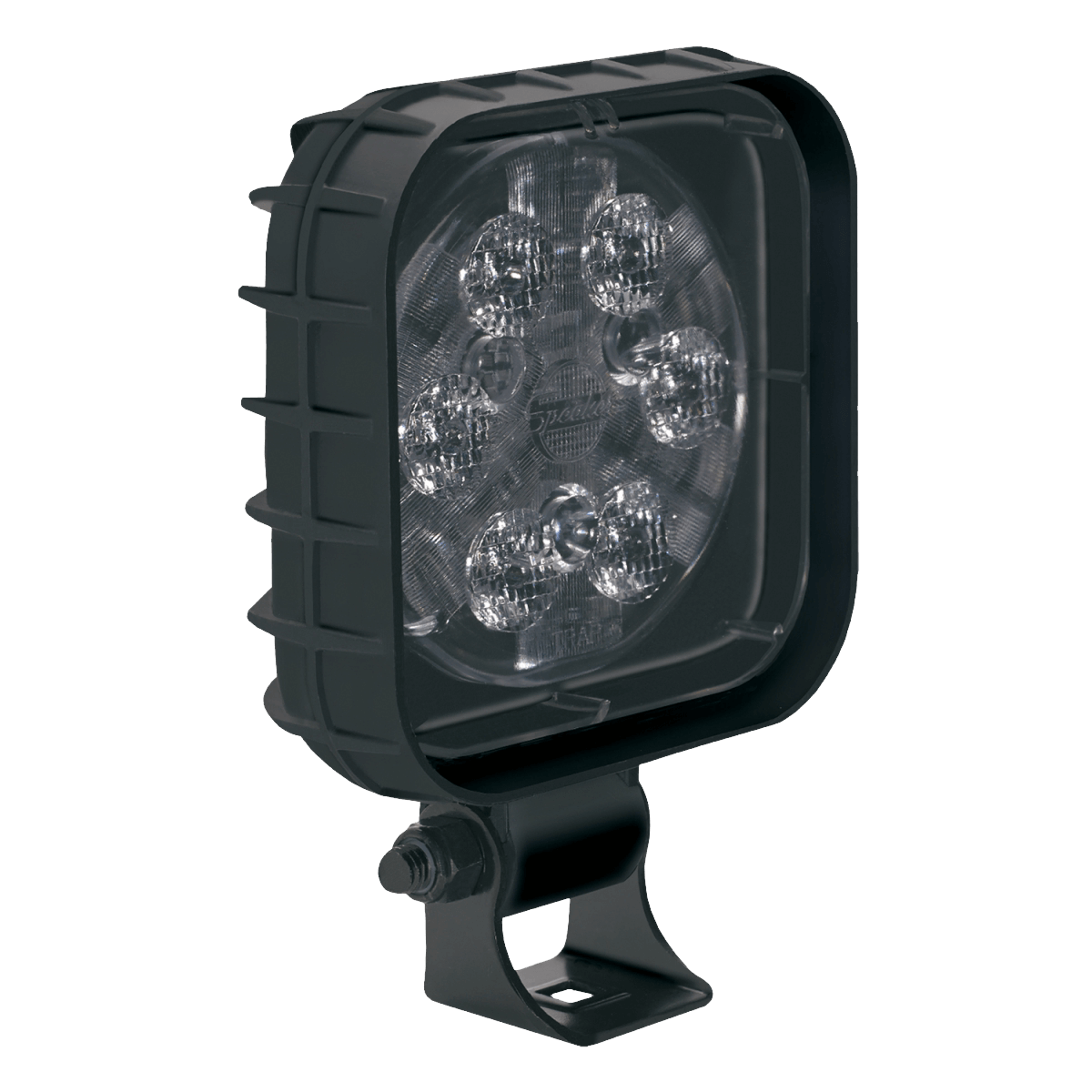

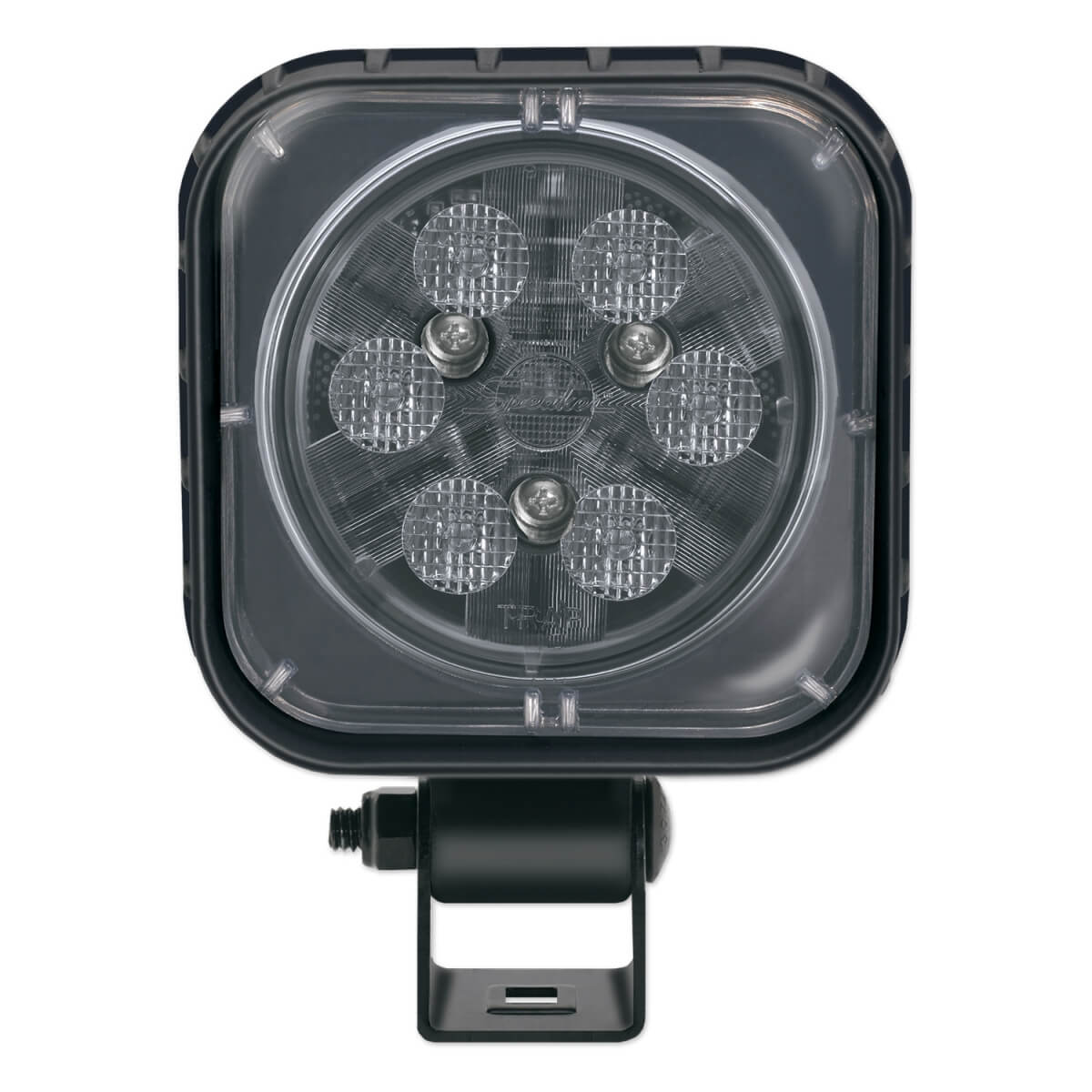

LED work light model 840 XD

12-110 V, 780 lm, flood

The housing of model 840 XD was modelled to the design of the classical square worklights. This means that model 840 can also be easily attached as a retrofit variant without the appearance of the vehicle changing much.

Model 670 is part of the XD Series.

Factsheets

Standards

Operating voltage [V], nominal	12-110
Operating voltage [V], functional	10-130
Power consumption [W]	12-14.3
Temperature range [° C]	-40 to 65
Protection class	IP69K
Standards	CISPR (12,22), UL
EMC (electromagnetic compatibility)	SAE (J1113)
Transient protection	330 V @ 1 Hz-100 pulses

Output

Brightness [lm], eff.	780
Performance class	up to 1000 lm eff.
Beam pattern / lens	Geländeausleuchtung
Temperature range [° C]	-40 to 65
