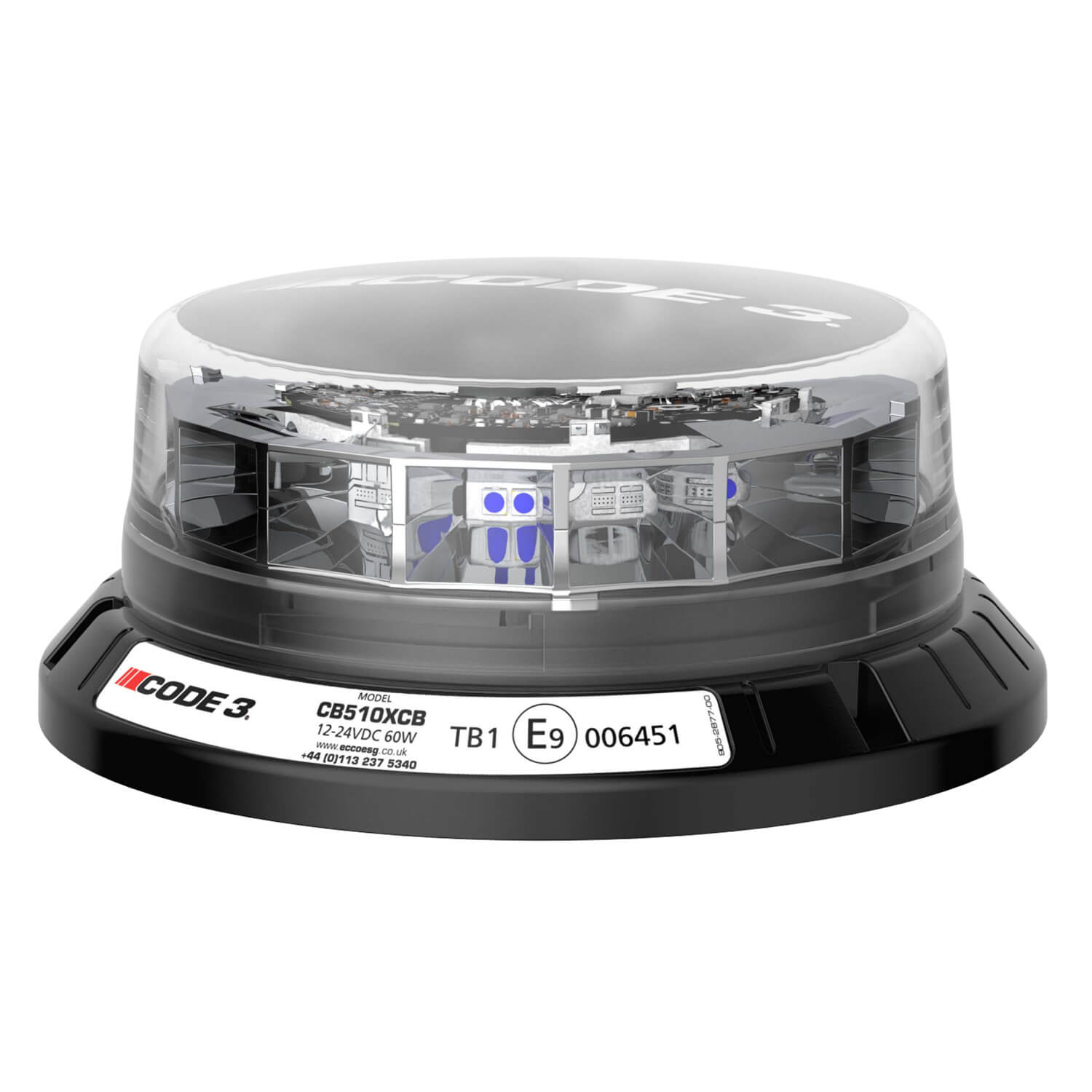

Strobe CB5100

12-32 V, blue, ECE road approval (Reg. 65), 3 bolt

CB5100 – Strobe light with flat profile, robust technology, and 360° visibility

The CB5100 LED strobe impresses with its compact design (only 63 mm high) and reliable 360° warning effect. Thanks to its robust construction with aluminum base, IP69K protection, and 12 selectable flash patterns, it is ideally equipped for tough everyday use. Available in single-color and two-color versions and with four common mounting options.

Only 63 mm installation height
Class 1 approval according to SAE J595 and ECE R65
12 flash patterns, including ICAO
Protection class IP69K, vibration-resistant
Mounting: single bolt, 3-bolt, DIN or magnet
Colors: yellow, red, blue / also dual colors

Factsheets

Standards

Operating voltage [V], nominal	12-32
Power consumption [W]	66
Temperature range [° C]	-30 to 50
Protection class	IP69K
Standards	ECE (Reg. 65), CISPR 25-3
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Brightness	SAE Cl. I
Beam pattern / lens	12 versch. Blitzmuster
Temperature range [° C]	-30 to 50
