Slim, robust, versatile - that's model 260! The Model 260 rear light series combines modern LED technology with a compact design and sophisticated functionality. Whether as a tail light, stop...
Model 260
12-24 V, stop and tail light, ECE road approval, flange mount, red lens
Slim, robust, versatile - that's model 260!

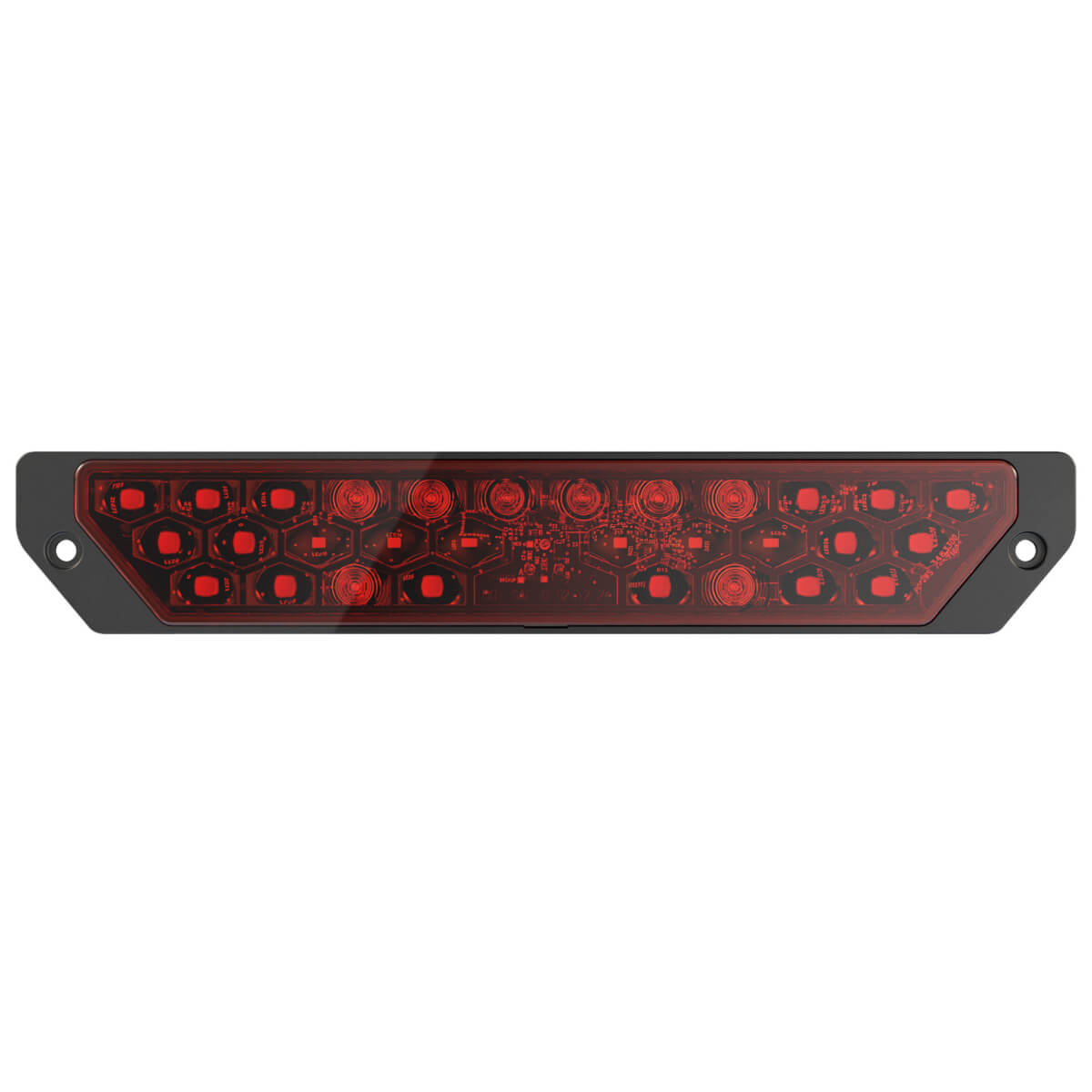

The Model 260 rear light series combines modern LED technology with a compact design and sophisticated functionality. Whether as a tail light, stop light, indicator, reversing light or rear fog light, or as a combination of these - Model 260 covers all important functions while remaining pleasantly light: at only around half the weight of comparable rear lights, it is ideal for applications where every gram counts.

Installation is also impressively flexible:

The lights are designed for either flat mounting (flange mounting) or for quick mounting via posts. Matching speed nuts facilitate tool-free installation. In addition, a special mount is available, with which the lights can also be securely mounted as a classic pedestal mounts.

Model 260 is therefore a well thought-out solution for vehicles and machines where clear signals, little installation space and simple mounting are important.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-30
Power consumption [W] 5.52 (stop), 0.55 (tail)
Temperature range [° C] -40 to 65
Protection class IP67 & IP69K
Standards ECE (Reg. 148-R1, 148-S1), SAE (J2261, J585, J586, J588)
EMC (electromagnetic compatibility) ECE (Reg. 10)
Output
Temperature range [° C] -40 to 65
Mounting

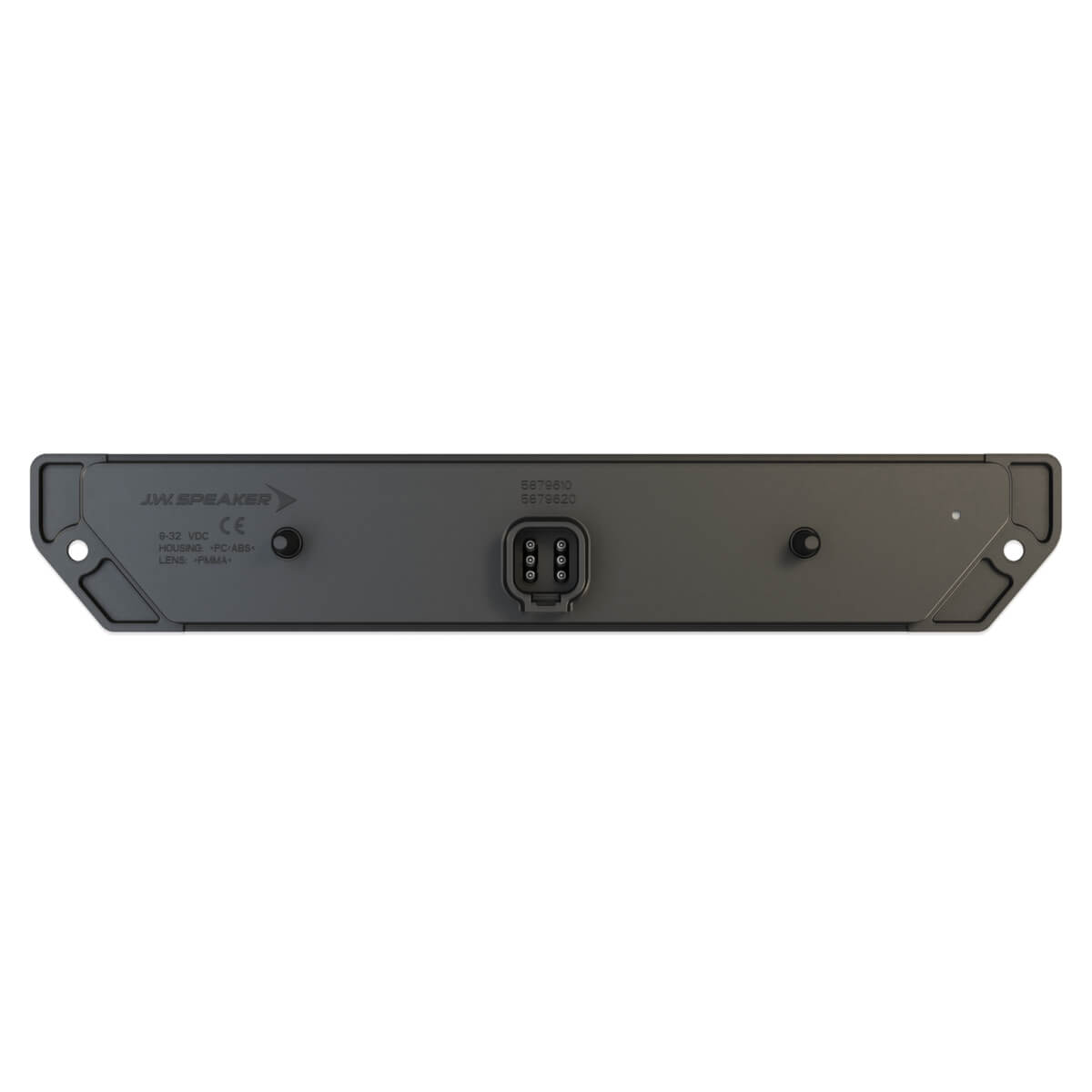

Mating connector Deutsch DT06-3S
Reverse polarity protection 1
Functions
Taillight
Stop light
Road approval
