Preview: SS-1002_Zuendgluehstartschalter_476020.jpg

Item no.: SS-1002-47602

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

This ignition, heat and start switch is ready for the toughest conditions. Proven Keya quality in a robust housing. A splash-protected key and an inner hardware that bears the name of Heavy Duty...

Close menu

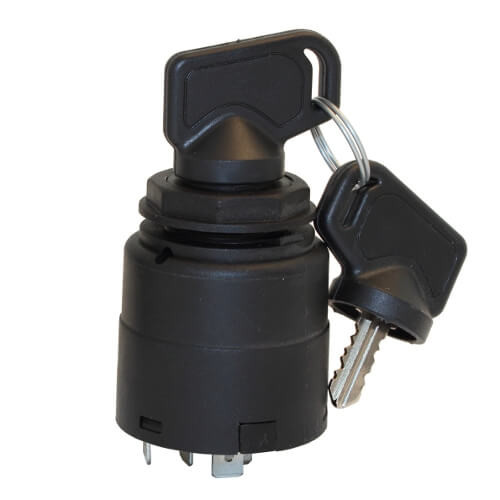

Ignition, heat and start key switch 476020 HD

key code M516, IP65

This ignition, heat and start switch is ready for the toughest conditions. Proven Keya quality in a robust housing. A splash-protected key and an inner hardware that bears the name of Heavy Duty rightly ensure a robustness that is unmatched in key switches.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Temperature range [° C]	-40 to 90
Protection class	IP65 (key side)
Resilience	Vibration 5 g 20-200 Hz, Salznebel 144 h, Feuchtigkeit 144 h (95% 55 °C)

Output

Temperature range [° C]	-40 to 90
Lifespan	>50,000/<100,000 work cycles (electr./mechan.)
