One for all! If you are looking for a suitable warning light, you can quickly lose yourself in the jungle of possibilities. But it was so easy to find the optimal strobe for (almost) every...
Model 407 Slim
12-24 V, amber
One for all!

If you are looking for a suitable warning light, you can quickly lose yourself in the jungle of possibilities. But it was so easy to find the optimal strobe for (almost) every application. Because the solution is quite simple: Model 407. There is no need for another warning light!

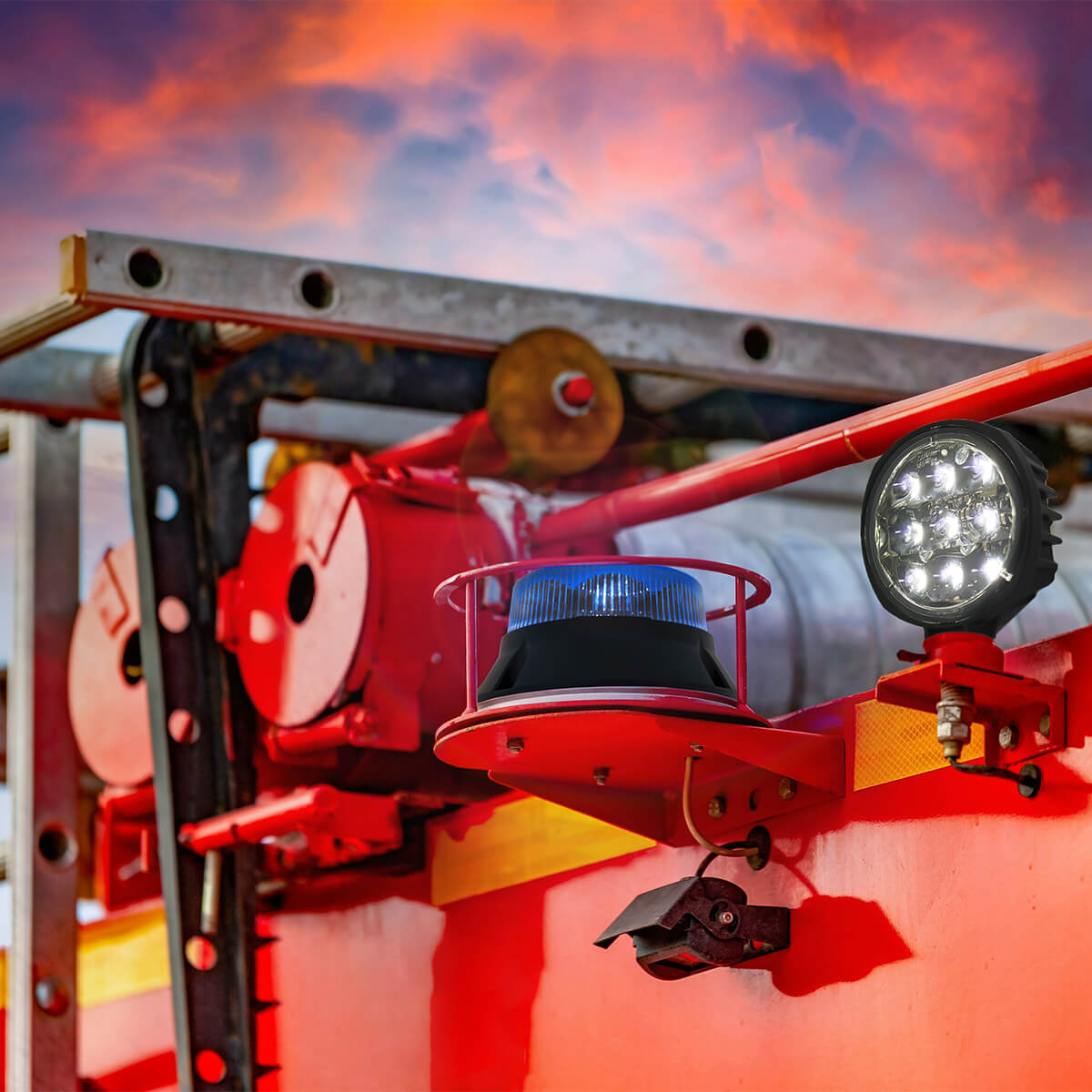

The rotating and strobe beacon is suitable for a wide range of applications, especially where space is not unlimited.

The main focus was on extreme longevity. Model 407 has a solid base made of die-cast aluminum. The beacon dome is completely made of impact-resistant polycarbonate and defies even powerful hammer strikes. And, of course, the warning light is equipped with extremely durable LEDs.

The construction of this warning light provides a very good seal against the effects of water and other harsh environmental conditions. IP67 sealing is self-evident.

Model 407 is available in orange, red, green and blue and for both roof mounting and pipe mounting.

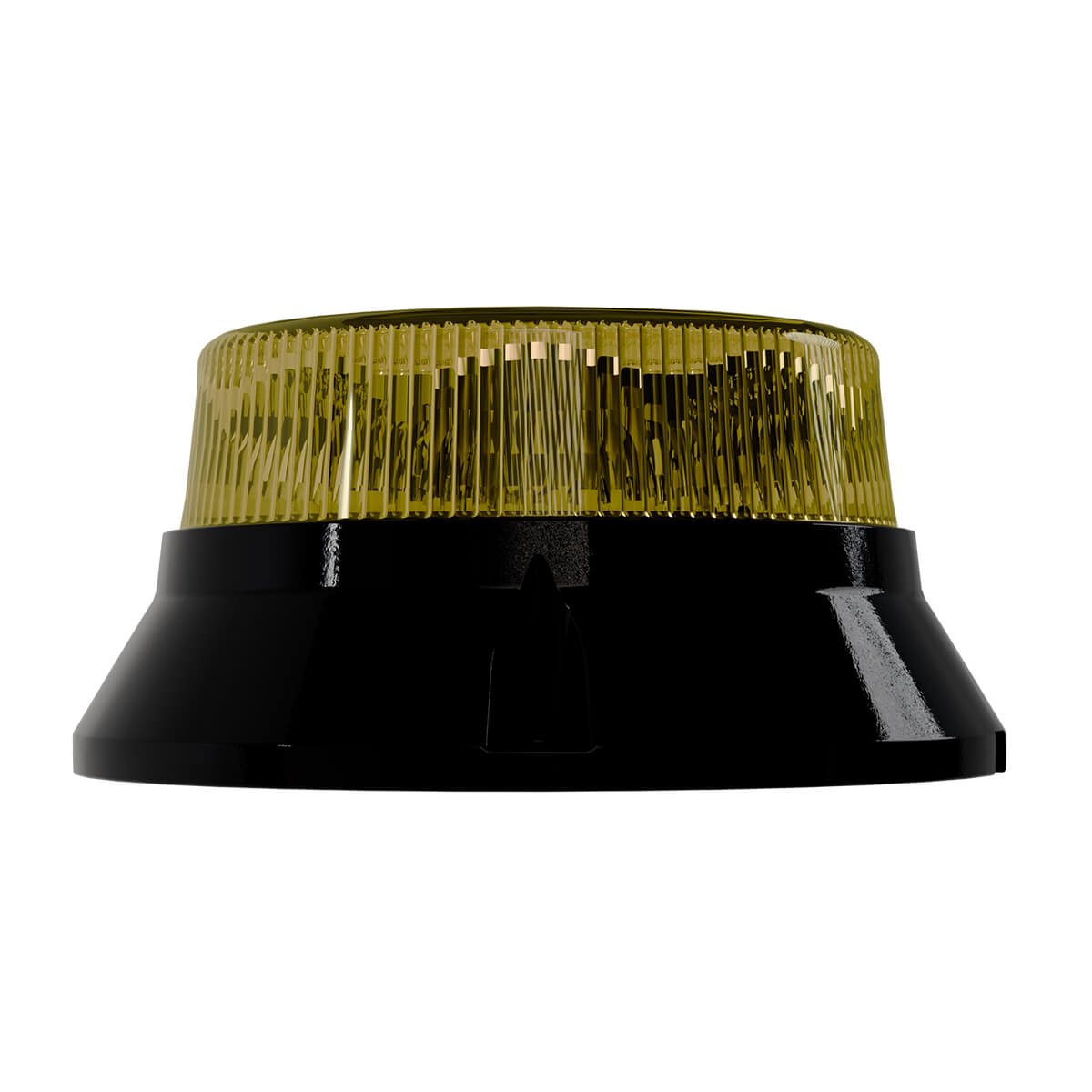

NEW: Model 407 Slim has a lower hood. While this was 97 mm high on model 407, the Slim version is now only 60 mm high. And with the same light area and visibility!

Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-32
Power consumption [W] 19.08-20.64
Temperature range [° C] -40 to 60
Protection class IP67 & IP69K
Standards ECE (Reg. 65), SAE (J845 Cl. I)
EMC (electromagnetic compatibility) ECE (Reg. 10)
Output
Temperature range [° C] -40 to 60
Frequency, revolutions [Hz, rpm, fpm] 4 Blitzmodi (Rundum, einfach, doppelt, vierfach)
Mounting
Connector Bare leads

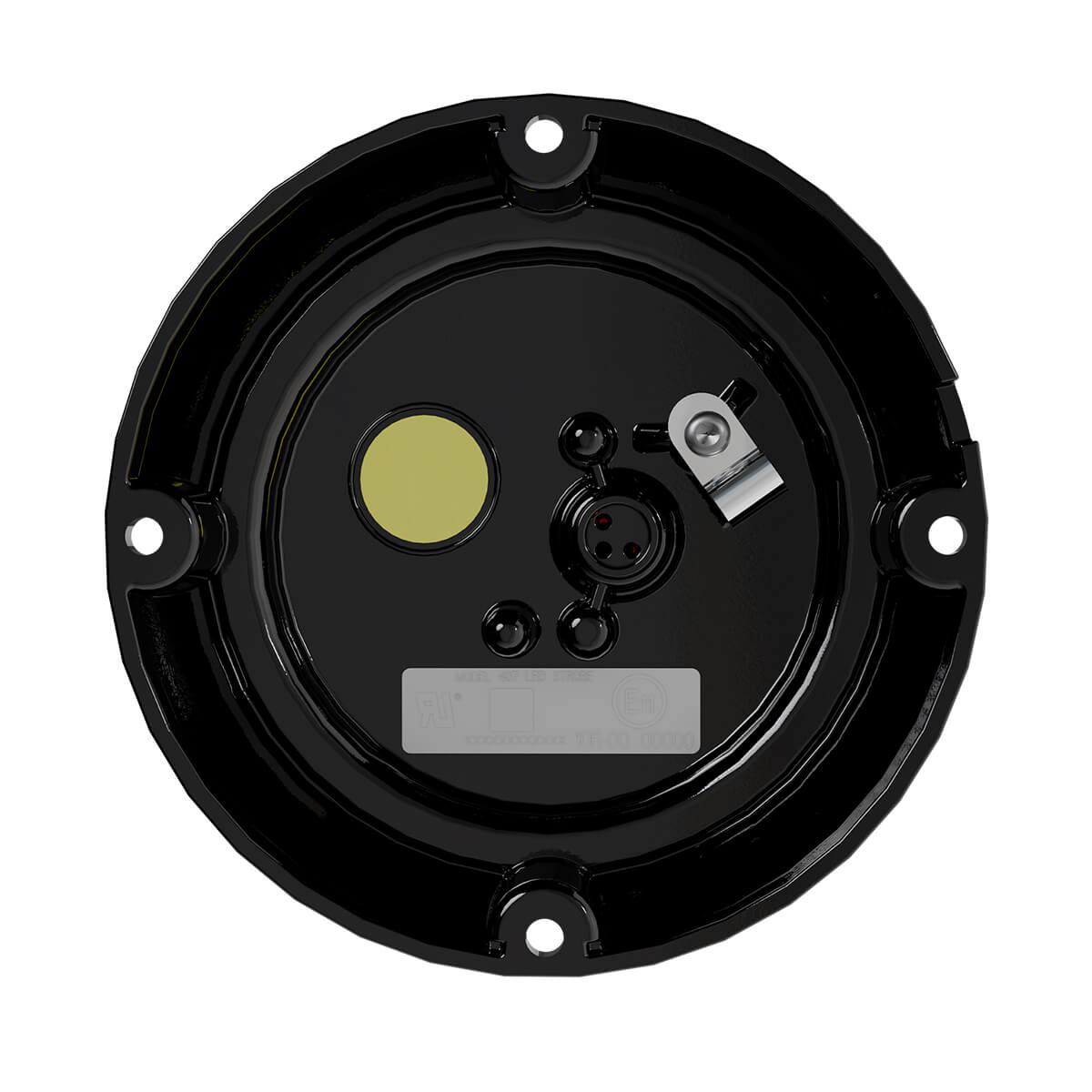

Mounting Flat mounting (4 screws)
Installation dimensions / diameter [mm] 111,3
Reverse polarity protection 1
Functions
Road approval
