New housing, new possibilities: Model 260 redesigned
published on 1. June 2025
Model 260 has always been slim, lightweight, and high-performing – ideal for modern vehicle designs with limited space. Now, the redesigned version takes versatility to a new level: Two targeted improvements make this LED rear light even better suited for today’s OEM and specialty vehicle demands – offering more installation freedom and built-in intelligence.

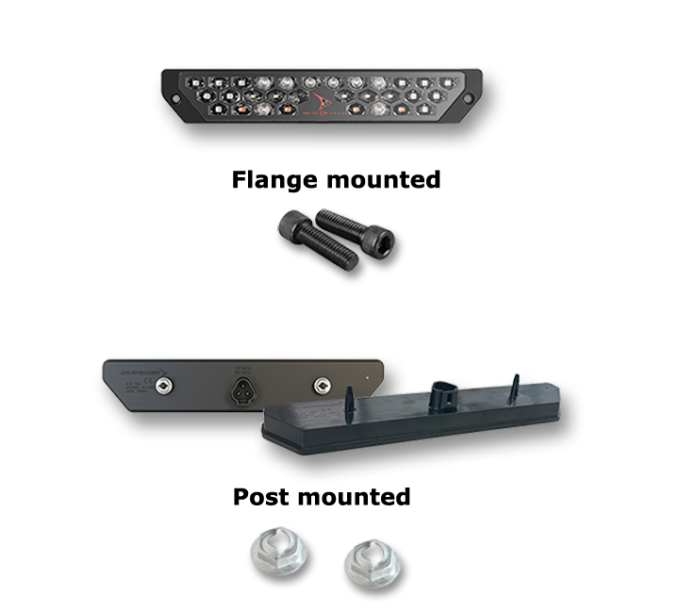

New housing – two mounting options
The updated housing of Model 260 now supports two professional mounting methods:
- Flange mounting using M6 bolts for surface installation
- Post mounting (Ø 7 mm) with speed nuts for integration into panels or molded brackets
Both options are based on a symmetrical design and allow installation in any 360° orientation without compromising photometric compliance. The result: reduced installation effort and fewer part variations across OEM projects.
Integrated indicator outage detection
For variants with turn signal functionality, an integrated ISO 13207 outage detection system is now built into the light – standard and without the need for external electronics. The so-called ISO pulse signal detects turn signal failures and sends the appropriate feedback to the vehicle’s onboard electronics – reliably, compliant, and fully compatible with both 12V and 24V systems.
This reduces wiring complexity and increases overall system safety – especially for ECE-regulated markets.

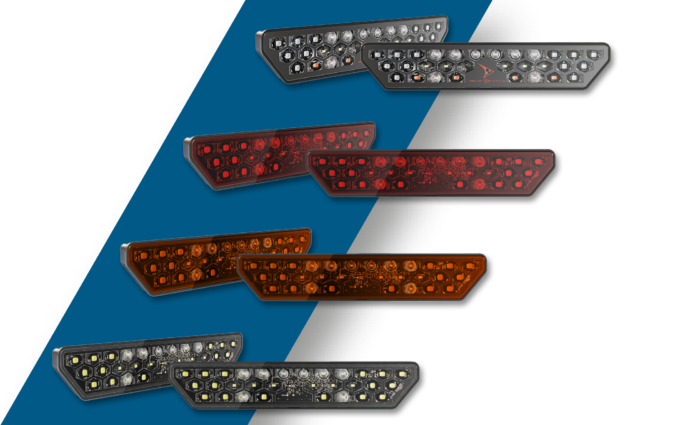

A variant for every application
Model 260 is available as a fully equipped combination light or in dedicated single-function versions. All models are ECE-certified, IP67/IP69K rated, and suitable for 360° mounting.
- Combination light with 5 functions – brake light, tail light, turn signal, rear fog light, and reverse light
- Single-function options:
- Stop/tail light only
- Turn signal only
- Reverse light only
Conclusion: A rear light for modern needs
With its new housing, dual mounting flexibility, and ISO-compliant monitoring, Model 260 is more adaptable and system-ready than ever.
Still lightweight, sleek, and highly visible – and optionally available with your own custom logo.
