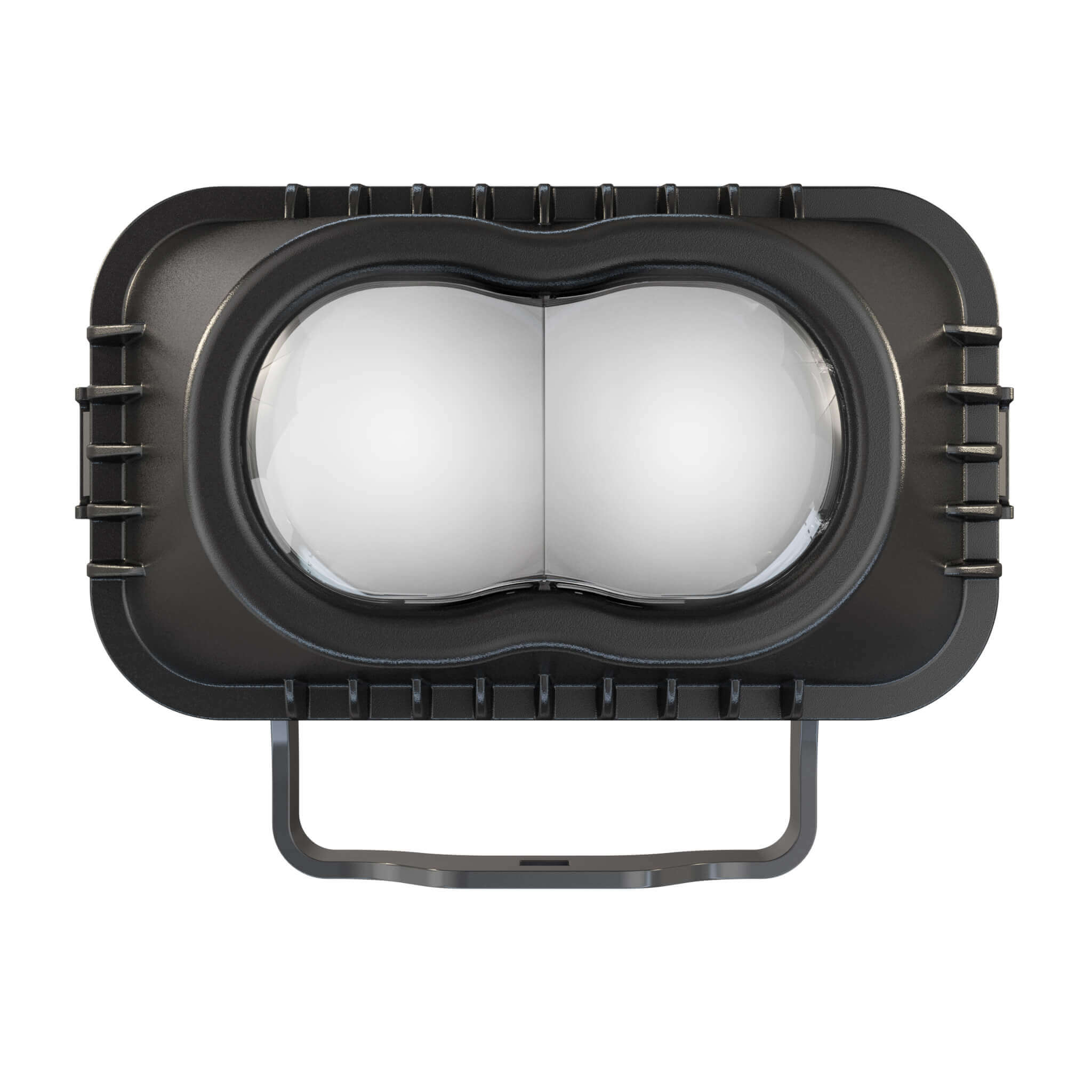

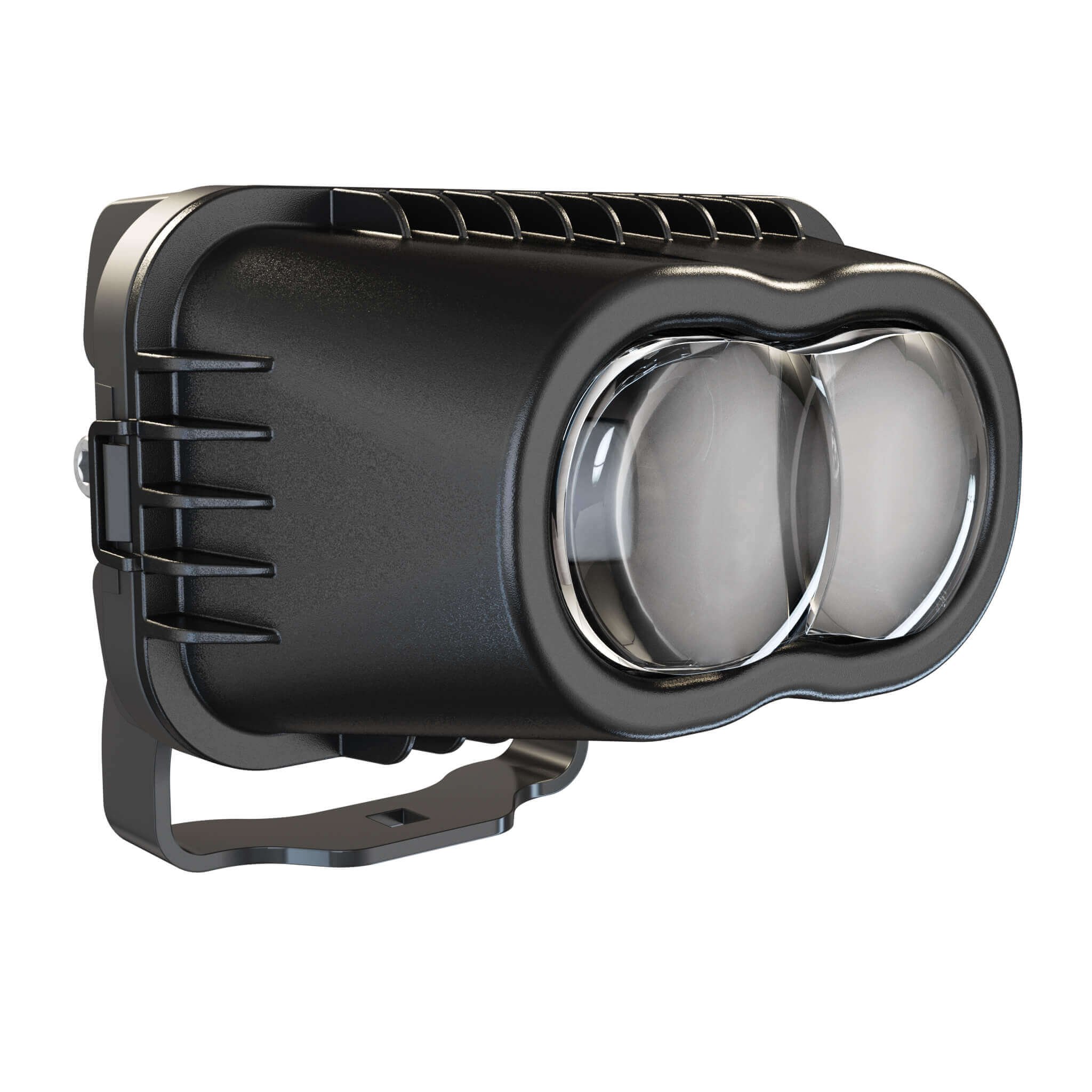

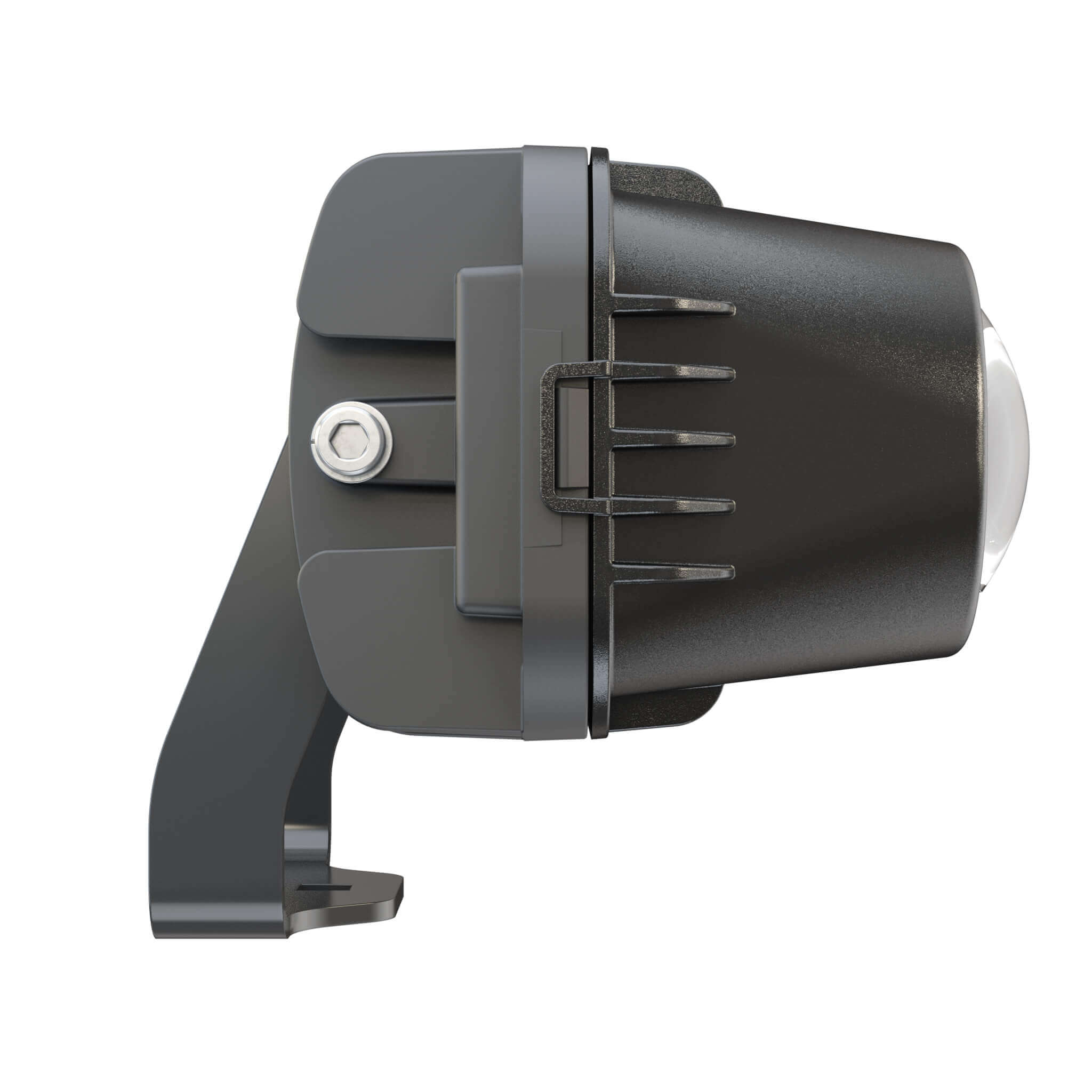

Projektor Modell 560
12-72 V, exclamation mark (blue/blue)
Effectiveness in light. With a warning sign projector, you know at a glance what is going on.

The warning sign projector model 560 is a useful addition to the warning zone lights product group. This innovative light does not just draw a dot or a line on the ground. It projects a sharply cut symbol with a high warning effect onto the ground in front of or behind the vehicle. Depending on the symbol, this is displayed in one or two colours in red, blue and white, whereby the individual elements can flash separately in different modes. This leads to even greater visibility compared to a static projection and thus to a significantly increased warning effect.

The warning sign projector is housed in a compact and robust housing and works with operating voltages of 12-72 V. In principle, it fits on any vehicle and is suitable for many applications.
Factsheets
Standards
Operating voltage [V], nominal 12-72
Operating voltage [V], functional 10-90
Power consumption [W] 43.2
Protection class IP67 & IP69K
EMC (electromagnetic compatibility) ECE (Reg. 10)
Mounting
Mating connector PE 12110293
Mounting Universal mount
Reverse polarity protection Yes
Functions
Warning spot
Warning area
